When it comes to securely fastening and routing cables and wires, cable holders are indispensable. No matter whether you need to reliably retain individual cables and wires or parallel route several wires, holders from HellermannTyton provide you with a practical and versatile solutions.
HellermannTyton offers cable holders for specific industries and fields of application, including:
The growing number of electronic components in various branches of industry presents cable management with lots of new challenges. For example, the lines must be routed without rattling or be easier to install. In addition, it must be possible to maintain the cable safely and quickly.

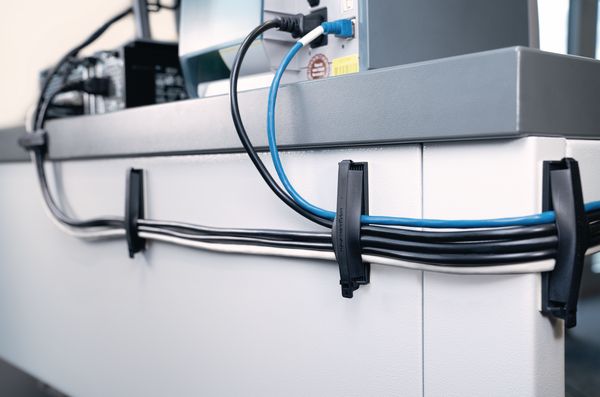

Whether in white goods such as washing machines, in vehicles or in panel building: many applications require cable holders that hold wires firmly in place and prevent them from rattling. For this purpose, HellermannTyton offers various solutions:
Especially when it comes to replacing heavy metal brackets, plastic mounting solutions help save space and weight.

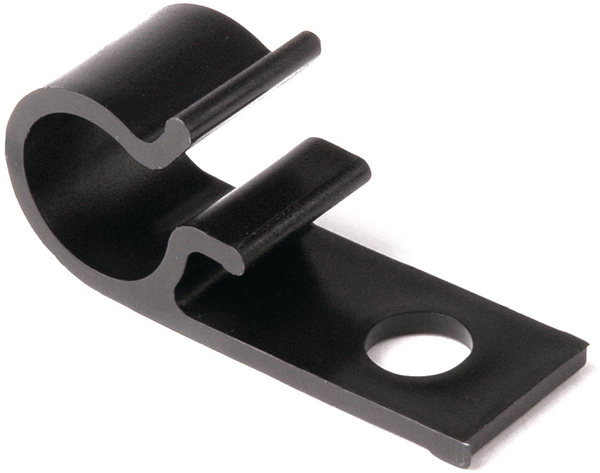

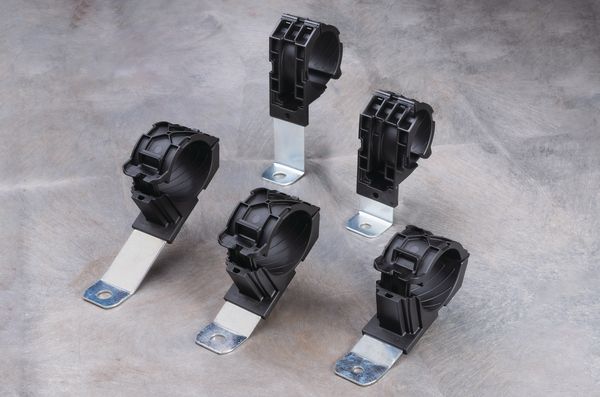

In addition to fastenings for sticking, plugging or clipping, HellermannTyton also offers classic cable clips for screw mounting. Examples include our various cable tie mounts or screwable D-clips.
Your advantages:

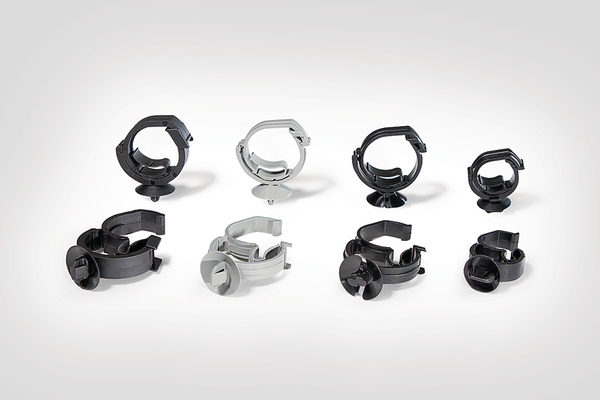

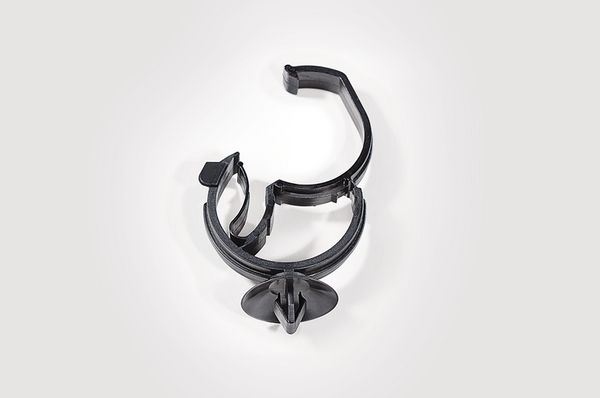

The requirements for orderly and safe cable routing are becoming more and more demanding. With HellermannTyton AHC series you can fasten your cables and wires quickly and easily wherever reliable cable routing is required – for example in panel building, in mechanical engineering or in vehicle assembly.
Advantages of the AHC cable holder clips:
Holders from HellermannTyton can guide cables in different directions depending on the requirements. Twistable couplers even allow rotation of up to 360°. The decisive advantage: This compensates for movement of the cable in the application and helps minimise the risk of cable damage – which also has a positive impact on maintenance costs. HellermannTyton offers any other cable protection solutions.

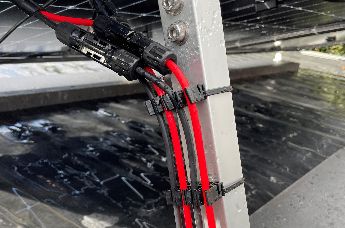

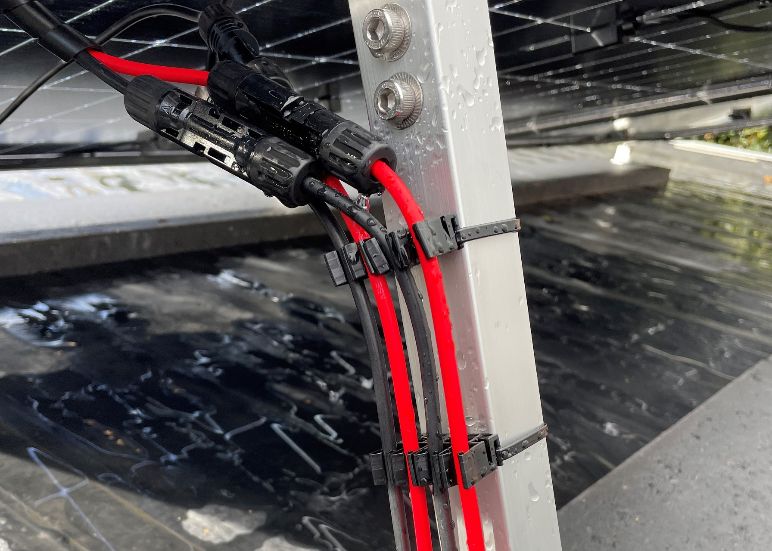

The QwicGrip cable holder offers a cost-effective fastening solution for the solar industry, streamlining installation with its push-in clamp that enables quick and easy one-handed cable laying. Each QwicGrip cable fastener can securely hold two cables ranging from 5.2 mm to 8 mm in diameter, and multiple cable holders can be linked together to manage larger cable runs in parallel.
By ensuring even cable spacing, QwicGrip cable fasteners also help minimise power loss due to electromagnetic interference. These cable holders are available in weather-resistant polyamide 6.6 (PA66W) and a more sustainable alternative, polyamide 11 (PA11). Derived from renewable castor oil sources, PA11 is an eco-friendly choice that offers durability in outdoor applications, with exceptional resistance to chemicals, abrasion, and UV radiation, even in subtropical conditions.
For parallel applications, cable ties with widths ranging from 4.6 mm to 8.6 mm can be used, corresponding to our T50 to T120 series. For perpendicular applications, a cable tie with a width of 4.6 mm is suitable, corresponding to our T50 series.

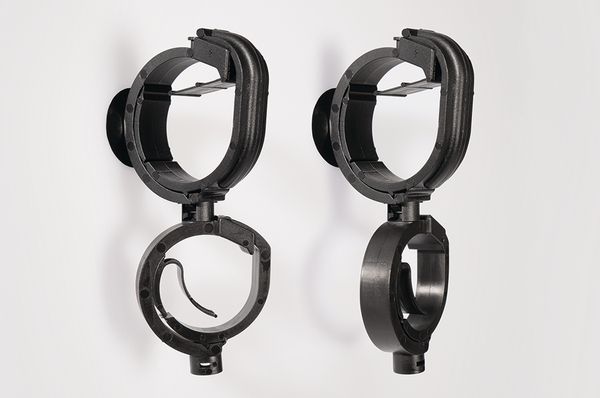

The cable holders in the IAHC series are used wherever several cables have to be routed in parallel. As with the AHC series, the cables are fastened quickly and easily using the push-and-click system. Particularly practical: Several IAHC holders can be connected and combined with each other by means of a coupler. The fastened cables can all be mounted on a single fixing point.
The wire holders of the IAHC series are characterized by the following advantages:
Learn more, here in this video.

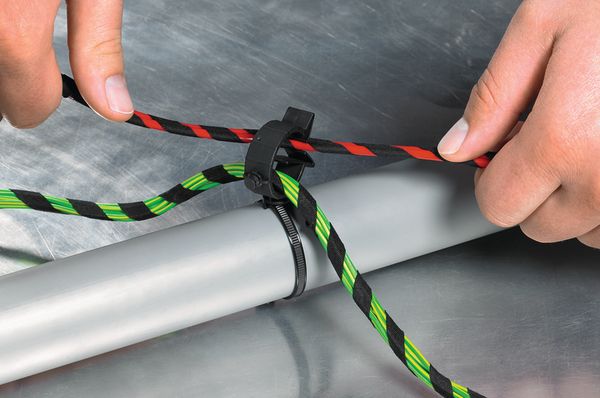

The subsequent attachment of additional cables to ready-made cable harnesses is a constant challenge for fitters. With the HellermannTyton Omega clips, cables and wires can be retrofitted easily and with little effort. The Omega clips are used wherever secure attachment of cable harnesses is required, especially in the automotive industry.
Advantages of the OC cable clips:
The special design of the Omega cable clip prevents cables from slipping out.
Additional cable tie dimensions are available for OmegaClips 1A and 2. There are two loop-in directions to choose from. Cable ties up to 5 mm wide can be used with the CBTO series.

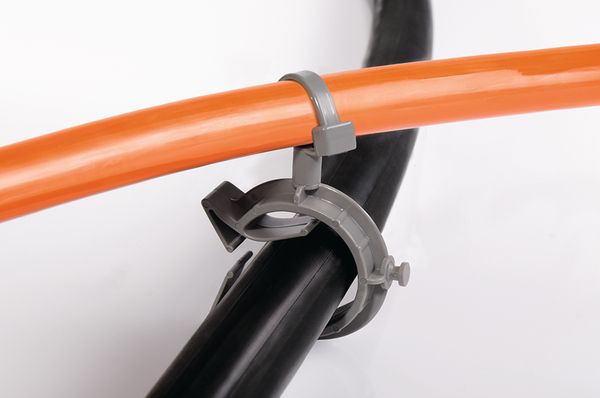

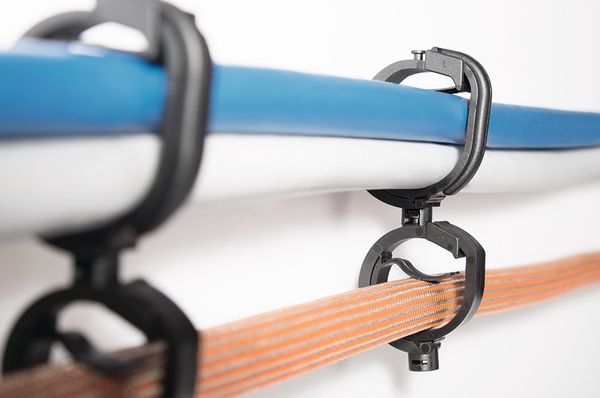

The HellermannTyton Modular Omega Clips (MOC) and Locked Omega Clips (LOC) can be used wherever hoses or conduits are already installed. The wire holders are simply clipped to them. Originally developed for the automotive industry, the MOC and LOC cable clips can be rotated – depending on the model – and thus accomodate movement.
Advantages of the MOC and LOC series:
Many HellermannTyton holders have rotatable connections. One example is the IAHC fastener, which makes it easy to couple two cable holders and rotate them 360 degrees. In which industries it is used? How it works in detail? See here in this video:
The sprung lever design of our Omega Clips and the AHC/IAHC series ensures a firm hold on the cable and prevents it from rattling in the holder.

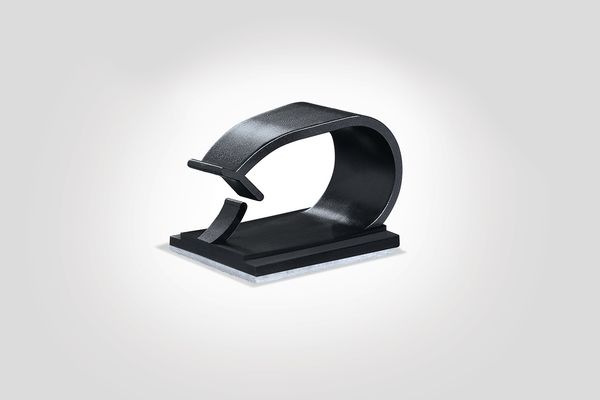

Special cable organiser for weld studs or threaded studs can be pushed on by hand, without tools. If drilling a mounting hole or screwing is not an option in your application, HellermannTyton also offers fastening clips for edges and self-adhesive cable tie mounts and clips.
