Inspection camera for conduits, black
Art.-No. 897-90060 | Cable Scout Cam-DIV-BK Details

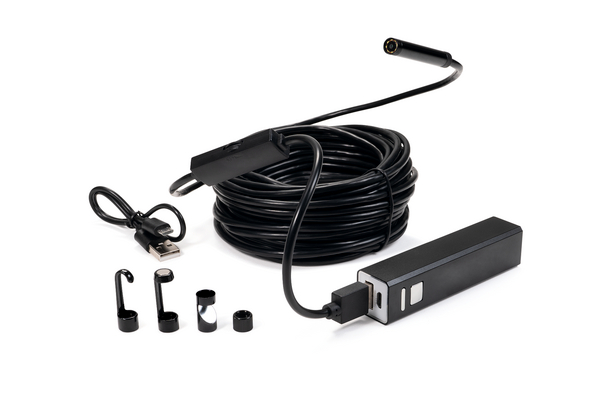

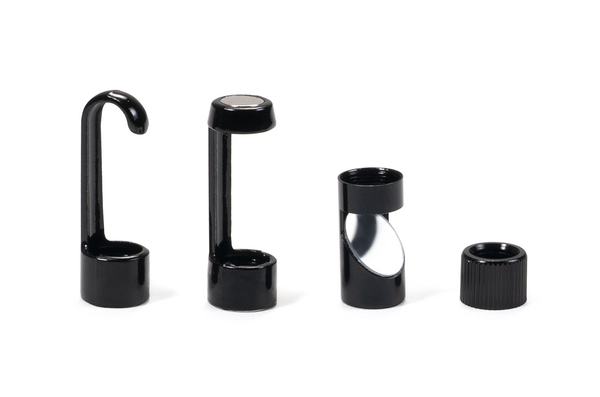

  • Accessory kit includes useful tools as hook, magnet and mirror and a watertight cap.
  • System compatability: Android 4.2 and above, iOS, Windows, Mac
  • Splash proof according to IP68 (lens tube only with supplied lens cover)
  • View Angle: 70°
  • Resolution: 2.0 megapixel
  • Cable length:10 m
  • Cable type: Semi rigid
  • Focal distance: 4-8 cm

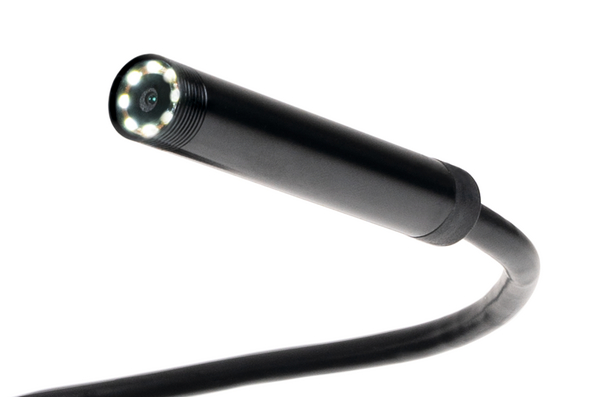

  • Camera head diameter: 8 mm
  • Frequency: 2.4 GHz
  • dimmable LED Light
Show more

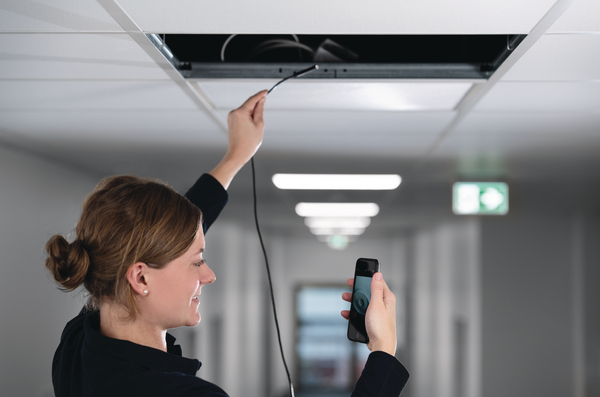

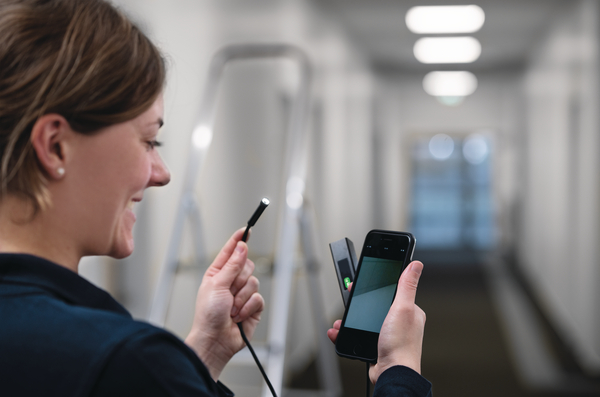

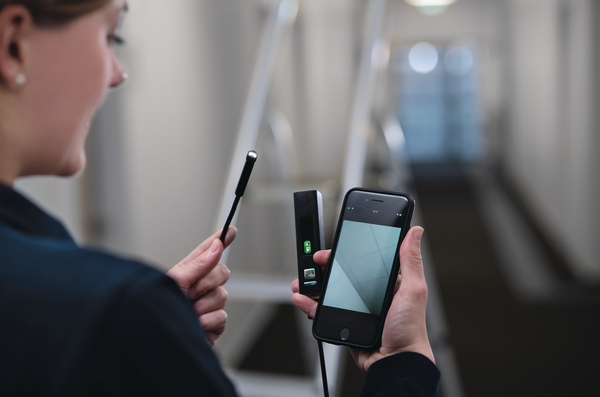

Application The Cable Scout Cam HD miniature inspection camera with WiFi transmitter is primarily intended for the visual inspection of inaccessible areas such as conduits, shafts, suspended ceilings, or drywall.
Colour Black (BK)
Description Accessory kit includes hook, magnet, mirror and watertight cap System compatability: Android 4.2 and above, iOS, Windows, Mac Splash proof according to IP68 (lens tube only with supplied lens cover) View Angle: 70°, Resolution: 2.0 megapixel, Cable length:10 m Cable type: Semi rigid, Focal distance: 4-8 cm, Camera head diameter: 8 mm, Frequency: 2.4 GHz, dimmable LED Light
Flexibility medium
Material Various (DIV)
PART DESCRIPTION Cable Scout Cam-DIV-BK
Pack Cont. 1pc.
Package Content packed in pcs.
Product Family Cable Scout Cam
Product Group Cable Installation System
Type Cable Scout Cam
ELV compliant (Article 4 - 2) YES
Halogen-free No
Hazardous Goods No
Operating Temperature 0 °C to +40 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026638751
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00146
Packaging 1 - Weight (kg) 0.95kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Qty 28
Packaging 4 - Height (m) 1.185m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 336
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.138
Packaging 4 - Width (m) 0.8m
