Cable tie mount for adhesive use, Wmax=4.1mm, ∅3.1 mm, Adhesive, black, 100pcs.
Art.-No. 151-28320 | MB3A-PA66-BK |  Details

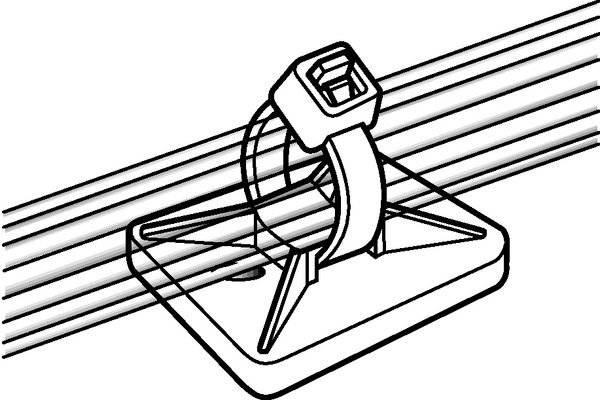

4-way cable tie entry for more installation options.

    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Downloads CAD-Download Datasheet

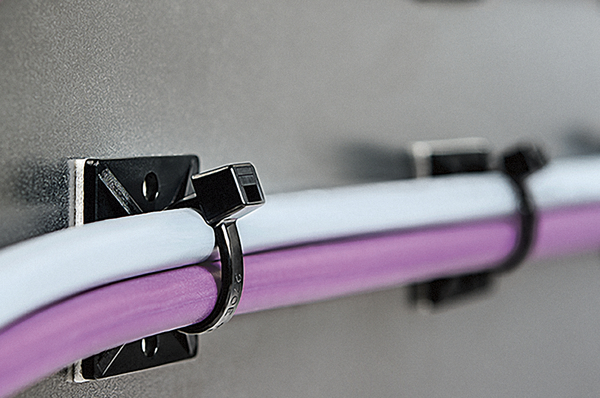

    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Black (BK)
    Fixation Method Screw Mounting and Adhesive
    For Ties T18 - T30
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type Adhesive
    PART DESCRIPTION MB3A-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Part No. 15128320
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Type MB3A

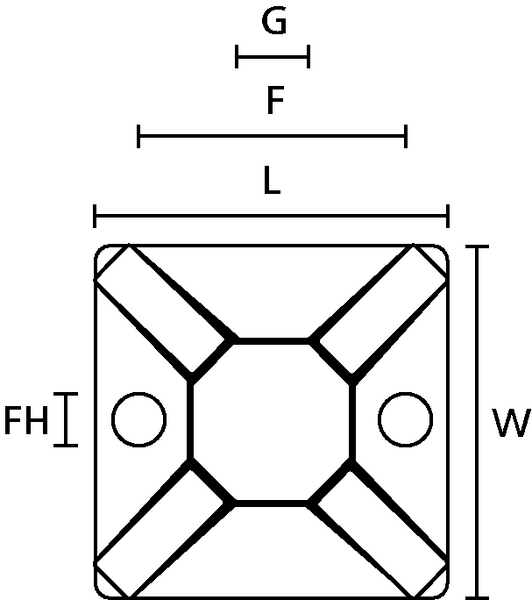

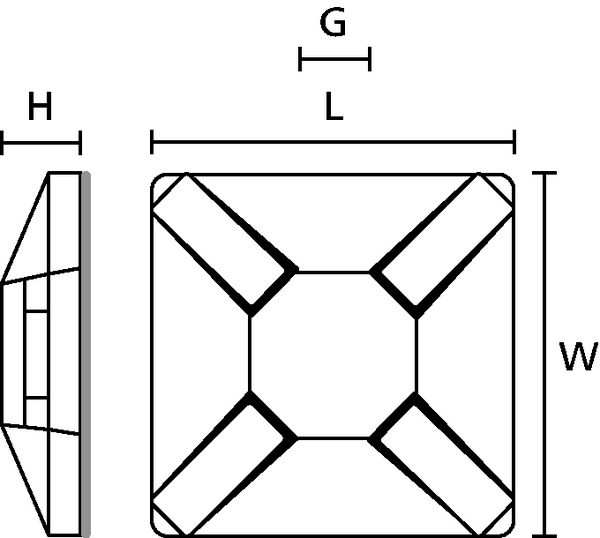

    Fixing Hole Centres (F) 13.2mm

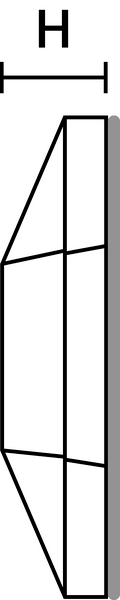

    Height (H) 3.8mm
    Length (L) 19.0mm
    Strap Width max. (G) 4.1mm
    Thickness of Adhesive (TA) nom. 0.8
    Width (W) 19.0mm
    for Hole ∅ (FH) 3.1 mm
    Adhesive Synthetic rubber with base of polyethylene foam
    Adhesive Operating Temperature -40 °C to +60 °C
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Hazardous Goods No
    Operating Temperature -40 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660311680
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00066m³
    Packaging 1 - Weight (kg) 0.083001kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 12000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.27312kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 247.6kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
