Cable tie mount for adhesive use, Wmax=8.0mm, ∅3.2 mm, natural, 100pcs.
Art.-No. 151-01690 | TY8G1S-PA66-NA |  Details

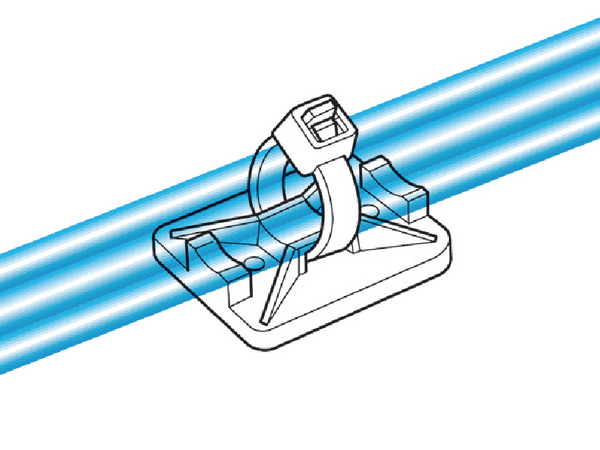

TY8G1 TY8G1S Natural Fixing Cable Tie Screw Mount

    • 2-way mounting base for safe guiding of cables and conduits
    • Suitable for applications with minimal space
    • Mounted before cable installation
    Downloads Datasheet
    Application Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Natural (NA)
    Description CRADLE SELF ADHESIVE NATURAL 33x25
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TY8G1S-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Part No. TY8NT
    Product Family TY-Series longish design
    Product Group Cable tie mounts
    Type TY8G1S
    Fixing Hole Centres (F) 15.0mm
    Fixing Hole Centres (F2) 14.0mm

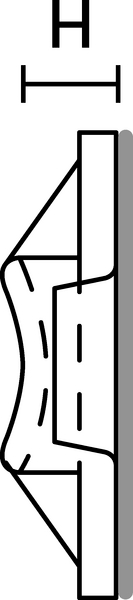

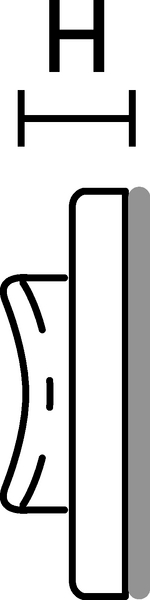

    Height (H) 5.45mm
    Length (L) 32.0mm
    Strap Width max. (G) 8.0mm
    Width (W) 25.0mm
    for Hole ∅ (FH) 3.2 mm
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242004667
    UNSPSC Key 39121717
