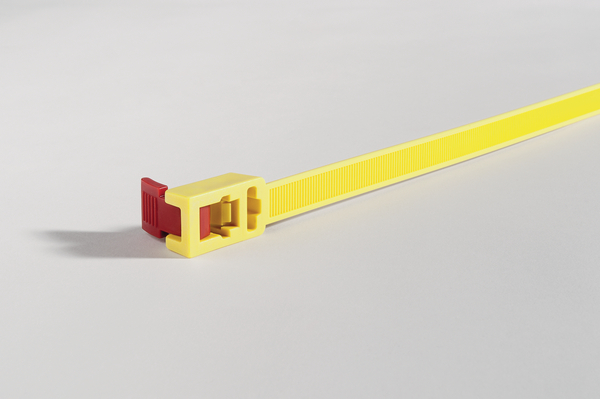

Releasable cable tie, 752.0x13.0mm, ∅40.0-210.0mm, 888N, yellow/red, 5pcs.
Art.-No. 115-00001 | SpeedyTie (RTT750HR)-PA66-RD/YE |  Details

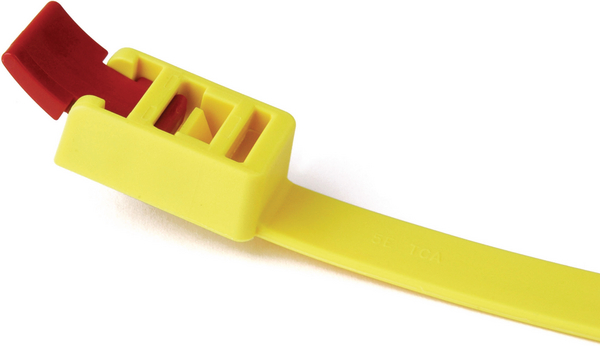

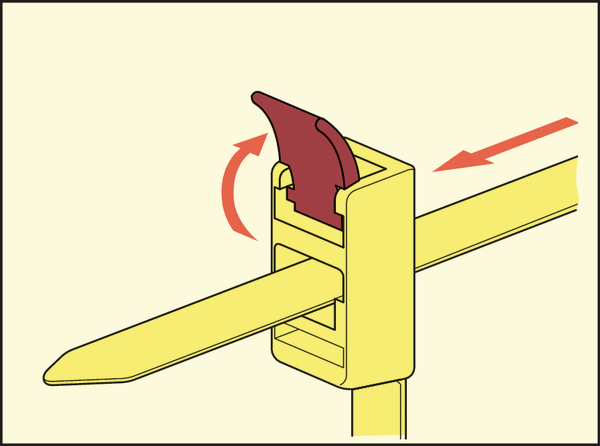

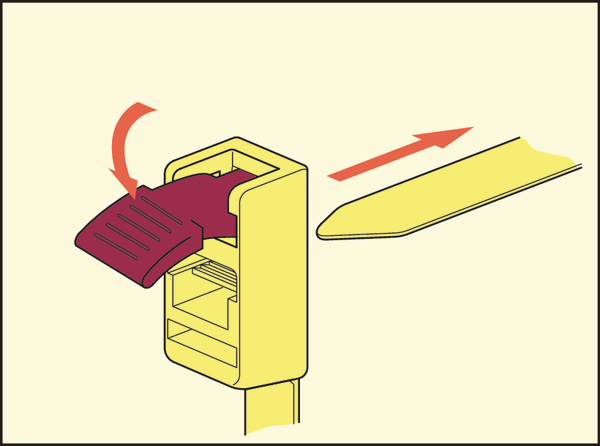

Releasable cable tie features a head design with extended pawl for quick release of bundles.

    • Releasable and reusable cable tie
    • Bears loads of up to 888 N (approx. 90 kg)
    • 750 mm long for use in a wide variety of applications

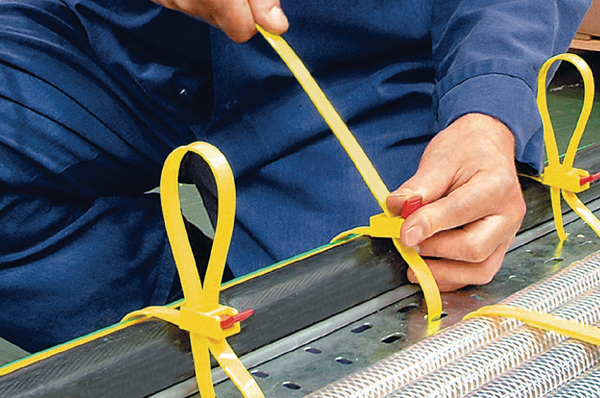

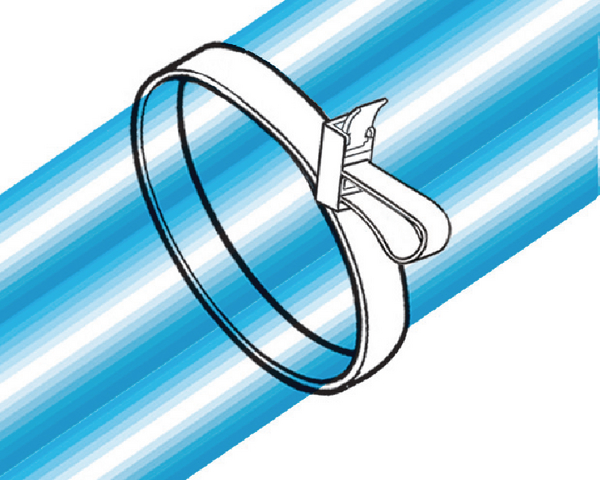

    • Can be used for parallel bundling
    • Easy to handle when wearing work gloves
    • Available in signal yellow and in black
    Show more
    Downloads Datasheet

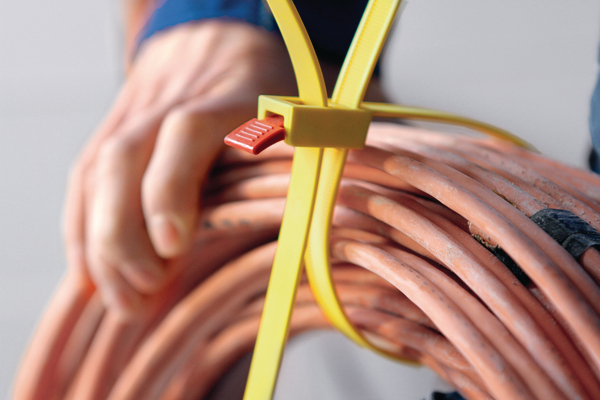

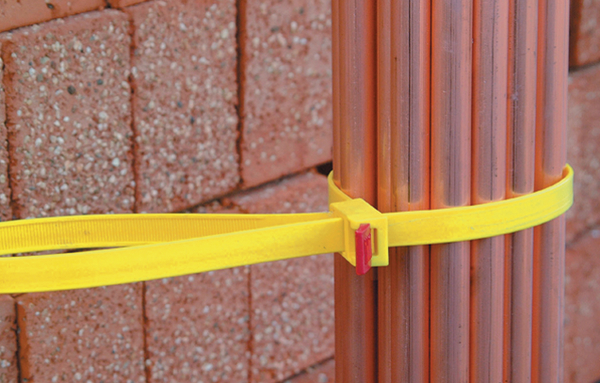

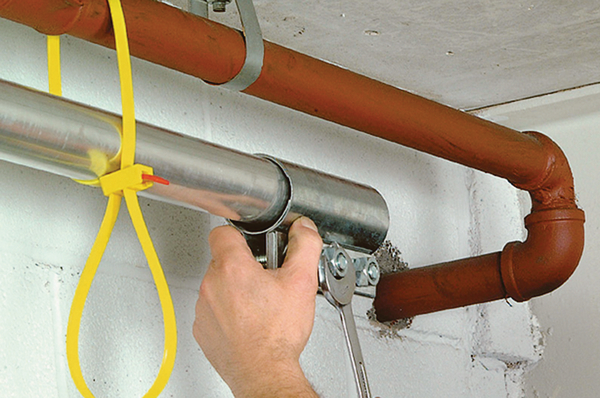

    Application The versatility of the SpeedyTie means that it is suitable for a multitude of applications like electro installations, heating and ventilation, construction, exhibitions and trade fairs. Whether it is used for permanent or temporarily solutions the SpeedyTie is a very strong helping hand in every situation.
    Colour Yellow (YE), Red (RD)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable, for multiple routing
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION SpeedyTie (RTT750HR)-PA66-RD/YE
    Pack Cont. 5pcs.
    Package Content packed in bag
    Part No. RTT750HR1
    Product Family SpeedyTie
    Product Group Cable ties with quick release mechanism, parallel bundling
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type SpeedyTie (RTT750HR)
    Variant Inside Serrated
    Bundle Diameter max (metric) 210.0mm
    Bundle ∅ min. 40.0mm

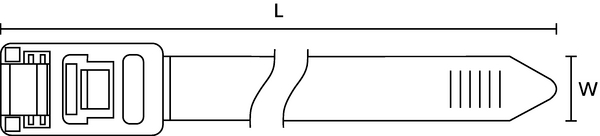

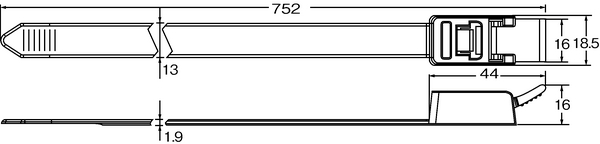

    Length (L) 752.0mm
    Min.Tensile Strength 888N
    Thickness (T) 1.9mm
    Width (W) 13.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4031026229478
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.485m
    Packaging 1 - Qty 5
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00175m³
    Packaging 1 - Weight (kg) 0.130638kg
    Packaging 1 - Width (m) 0.18m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 60
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 1.742416kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 2880
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 104.827kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
