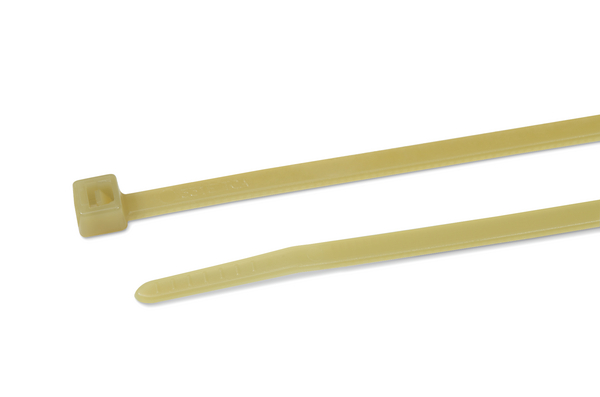

Cable tie inside serrated, 387x7.6mm, ∅3.0-100mm, natural, 100pcs.
Art.-No. 114-12179 | T120R(E)-PA46-NA |  Details

    This product is not available anymore.
    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Downloads Datasheet e-Learning

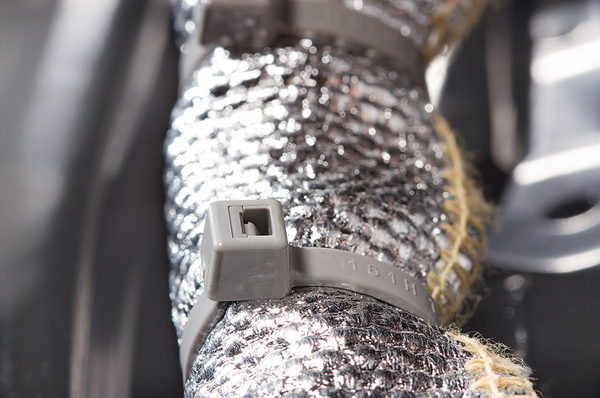

    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T120R(E)-PA46-NA
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family T-Series in PA46
    Product Group Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120R(E)
    Variant Inside Serrated
    Bundle Diameter max (metric) 100mm
    Bundle ∅ min. 3.0mm
    Length (L) 387mm
    Min.Tensile Strength 535N
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications IEC 60092 series
    UV-Stabilised No
    GTIN-13 / EAN 5022660021268
    Packaging 1 - Height (m) 0.066m
    Packaging 1 - Length (m) 0.416m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00428m³
    Packaging 1 - Weight (kg) 0.610001kg
    Packaging 1 - Width (m) 0.156m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 13.002kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 281.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
