24/12/2024

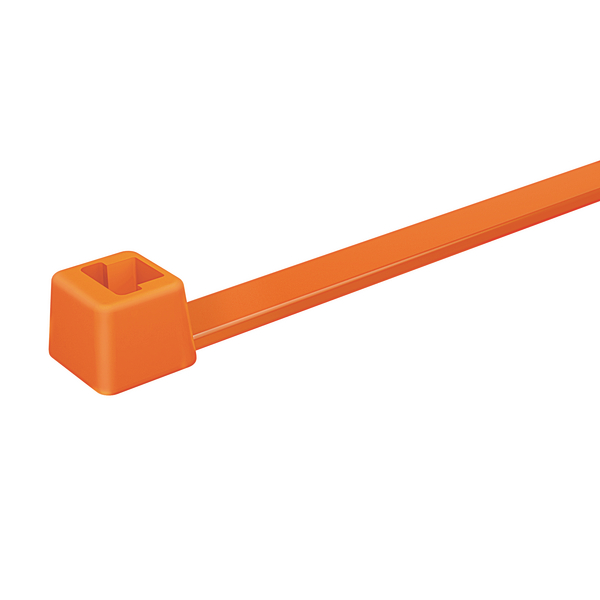

Cable tie inside serrated, 381.0x7.6mm, ∅3.0-100mm, orange, 50pcs.
Art.-No. 111-02138 | T120R-PA66-OG |  Details

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Downloads Datasheet e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Orange (OG)
    Description CABLE TIES INSULOK 388 x 7.8mm ORANGE
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T120R-PA66-OG
    Pack Cont. 50pcs.
    Package Content packed in bag
    Part No. T120ROR
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120R
    Variant Inside Serrated
    Bundle Diameter max (metric) 100mm
    Bundle ∅ min. 3.0mm
    Cable Tie Head Length (metric) 10.5mm
    Cable Tie Head Width (metric) 12.65mm
    Height (H) 7.35mm
    Length (L) 381.0mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.50"
    Thickness (T) 1.9mm
    Width (W) 7.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 6005242024603
    UNSPSC Key 39121703
