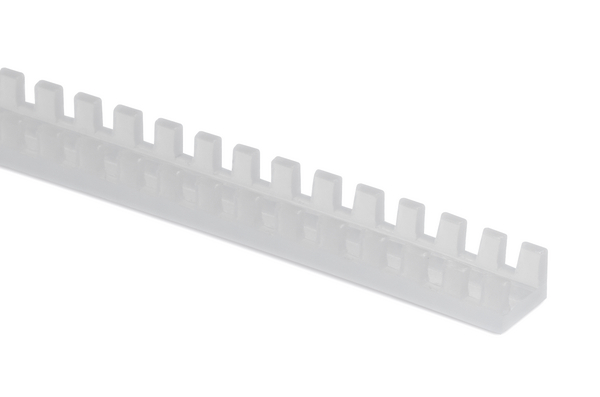

Edge protection 0.4-1.3 mm, Polyamide, natural, 25 m reel
Art.-No. 251-21109
| G51NA-PA6-NA
|
Details
- Very flexible
- Easily and securely applied without adhesives
- Very high abrasion resistance
- Close-fitting rail for effective, orderly-looking protection
More products in this product group:
| Application | Flexiform grommet strips are used to protect cables and wires routed through sharp-edged cutout sections. |
| Colour | Natural (NA) |
| Material | Polyamide 6 (PA6) |
| PART DESCRIPTION | G51NA-PA6-NA |
| Pack Cont. | 25m |
| Package Content packed in | reel |
| Product Family | Flexiform G51N PA6 grommet strip |
| Product Group | Edge protection for cut-out sections |
| Type | G51NA |
| Variant | Open |
|
|
| Height (H) | 4.3mm |
| Height (H2) | 2.7mm |
| Panel Thickness | 0.02 - 0.05" |
| Panel Thickness max. | 0.4 - 1.3mm |
| Panel Thickness max. (imperial) | 0.05" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 3.9mm |
| Width (W2) | 0.059" |
| Width (W2) | 1.5mm |
| for Panel Thickness min - max | 0.4 - 1.3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 9390-12-182-8815 |
| Operating Temperature | -60 °C to +95 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | NASM21266 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| US Gov. Designation | MS21266-1N |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 5022660006821 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00217m³ |
| Packaging 1 - Weight (kg) | 0.2643kg |
| Packaging 1 - Width (m) | 0.19m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 5000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 205.74kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 9.7ft |
