Edge protection grommets
Art.-No. 911-01788 | HV2214-PVC-BK |  Details

Edge protection grommets.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 9.6mm
    Colour Black (BK)
    Description GROMMETS PANEL HOLE 6.4x0.8x4.8mm
    Material Flexible Polyvinyl Chloride, cadmium free (PVC)
    PART DESCRIPTION HV2214-PVC-BK
    Pack Cont. 100pcs.
    Part No. HV2214
    Product Family HV2214
    Product Group Edge protection grommets
    Type HV2214
    Diameter (D) 4.8mm
    Height (H) 6.4mm
    Height (H2) 0.8mm
    Shore Hardness A 56±5
    for Hole ∅ (FH) 6.4 mm
    Flammability UL 94 V2
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242050091

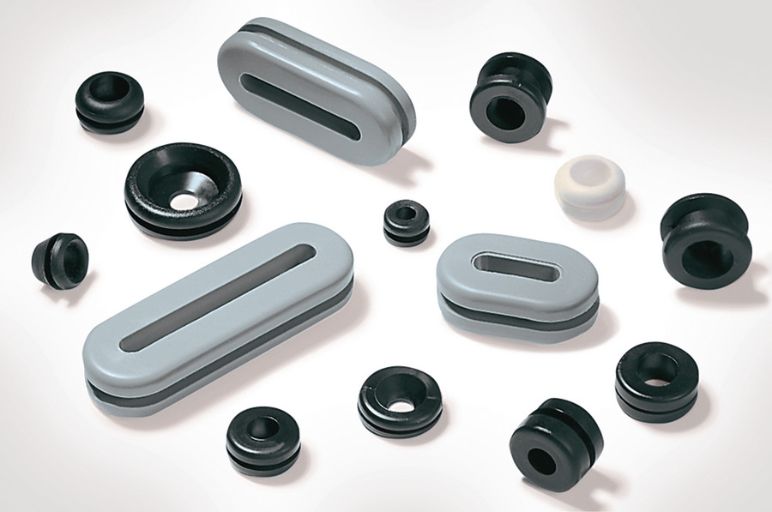

    Cable grommets Cable grommets

    Cable grommets

    Whether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find the right cable grommets for your application.

    Cable grommets >
    Art.-No.: 911-01788 Details Contact
