Cable grommet, natural, 2000pcs.
Art.-No. 631-08209 | HV4820-PVC-NA |  Details

Push-on caps and elbow grommets in various dimensions.

    This product is not available anymore.
    • Protects effectively against spraying water
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads Datasheet
    Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
    Cable ∅ max 6.0mm
    Cable ∅ min 2.0mm
    Colour Natural (NA)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION HV4820-PVC-NA
    Pack Cont. 2000pcs.
    Package Content packed in pcs.
    Part No. HV4820CL
    Product Family HV4820
    Product Group For blade receptables and terminals
    Type HV4820
    Variant Open

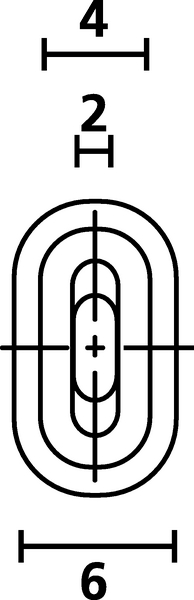

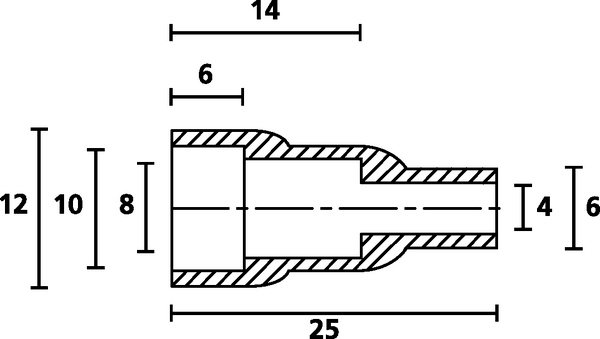

    Diameter (D) 10.0mm
    Length (L) 25.0mm
    Length (L2) 14.0mm
    Length (L3) 6.0mm
    Outside Ø (OD) 12.0mm
    Outside ∅ (OD2) 6.0mm
    Shore Hardness A 70±5
    ∅ (D2) 4.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026185767
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00533m³
    Packaging 1 - Weight (kg) 1.377kg
    Packaging 1 - Width (m) 0.31m
