Cable grommet, ∅5.3 mm, natural, 2000pcs.
Art.-No. 631-08219 | HV4821-PVC-FR-NA |  Details

Push-on caps and elbow grommets in various dimensions.

    • Protects effectively against spraying water
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads Datasheet
    Application Elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
    Colour Natural (NA)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV4821-PVC-FR-NA
    Pack Cont. 2000pcs.
    Package Content packed in pcs.
    Part No. HV4821CL
    Product Family Elbow grommets
    Product Group For flat pin bushings
    Type HV4821
    Variant Open

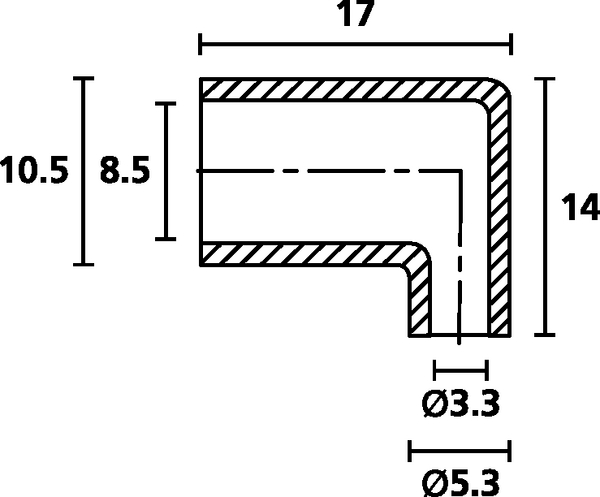

    Diameter (D) 8.5mm
    Height (H) 14.0mm
    Length (L) 17.0mm
    Outside Ø (OD) 10.5mm
    Outside ∅ (OD2) 5.3mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 5.3 mm
    ∅ (D2) 3.3mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0, FMVSS 302
    Halogen-free No
    Hazardous Goods No
    Nato number 5975-12-188-7912
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026185781
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00386m³
    Packaging 1 - Weight (kg) 1.15kg
    Packaging 1 - Width (m) 0.33m
