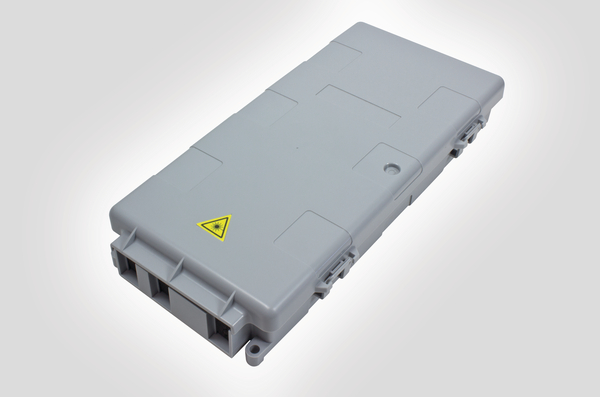

Customer Connection Enclosure
Art.-No. 857-01314 | CCE-A11121TXX/GY |  Details

Application The Customer Connection Enclosure (CCE) has been designed to be used as an external building entry point. The closure can be wall mounted providing a fibre termination and external network test point. The CCE has been designed to be the same size as a 'Brick Blow-Out Cover' to cover any unslightly damage caused by drilling.
Cable ∅ max 8.5mm
Cable ∅ min 2.5mm
Colour Grey (GY)
Connector Colour Green (GN)
Connector Type SC-APC
Content 1 x SC/APC Simplex Adaptor
Cable Entry Kit 2 x 6.0 - 8.5mm/1 x 2.5 - 6.5mm
Mechanical Fixing Kit
Wall Mounting Kit
Laser Label
Installed Adapters 1
Material Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV)
PART DESCRIPTION CCE-A11121TXX/GY
Pigtail Cable Capacity 0
Product Family Fibre Optic External Enclosure
Product Group Customer Connection Enclosure
Splice Capacity 4

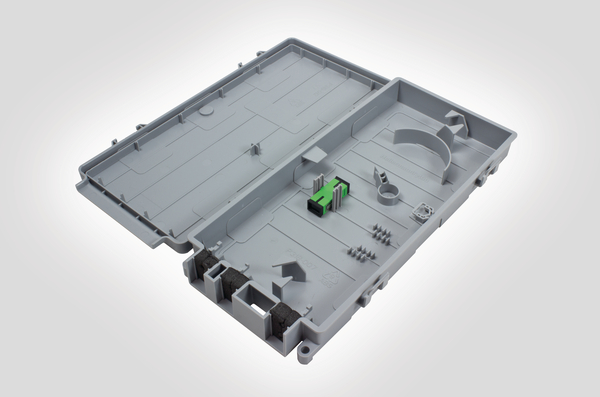

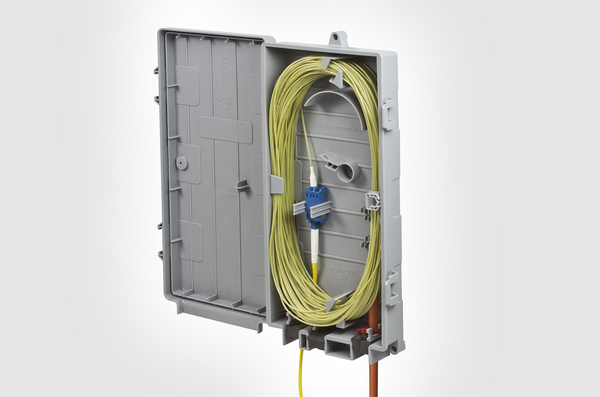

Technical Description The Customer Connection Enclosure (CCE) is supplied with 1 x SC/APC Simplex Adaptor. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure and is supplied with 3 cable entry seals 2 x 6.0-8.5mm and 1 x 2.5 - 6.5mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout for up to a maximum of 50m of 1.1mm diameter cable.
Type CCE-A11121TXX/GY
Variant Outdoor FTTx Enclosures
Depth (D) 37mm
Height (H) 263mm
Width (W) 130mm
GTIN-13 / EAN 5022660161742
