MDU S5 with 900µm trays and LC APC Adaptors
Art.-No. 857-01499 | MDU-S5-BLMX02CP024B121:8 |  Details

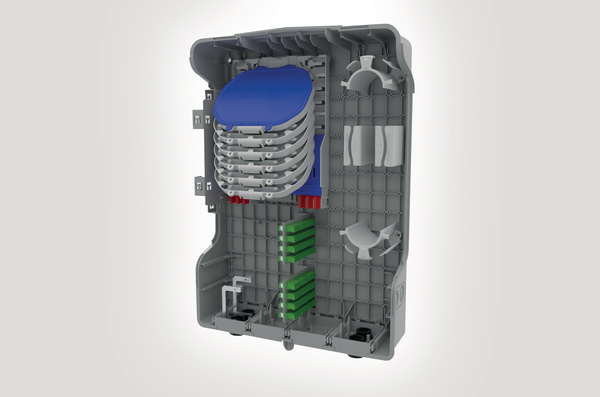

Internal view of the MDU - S5 Connectorised Enclosure.

    • 96 LC APC Customer Connection Points
    • Maximum 96 900µm Fibre Splices
    • 900µm IR Fibre Management System
    • Point to Multi Point Configuration
    • 6 900µm IR Trays
    • Loop Storage Basket
    • Loop Storage Manager
    • 4 x Entry/Exit Port Blanks
    • Strength Member Anchor
    • In-built spirit level
    • IP54/IK08
    • UV Stable
    • V0 Rating
    Show more
    Downloads CAD-Download
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Grey RAL 7035 (RAL7035)
    Connector Colour Green (GN)
    Connector Type LC-APC
    Content S5 Enclosure
    900µm IR Fibre Management System
    6 900µm IR Trays
    24 LC APC Quad Adaptors
    2 48 Way Quad Adaptor Connection Plates
    12 1:8 Bare End to LC APC PLC Splitters
    Loop Storage Basket
    Loop Storage Manager
    4 x Entry/Exit Port Blanks
    Strength Member Anchor
    In-built spirit level
    Fibre Picker
    Wall Mounting Kit
    Red and Green Polyspiral Tubing(2M)
    Red and Green Velcro Ties(5)
    Installed Adapters 24
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S5-BLMX02CP024B121:8
    Pack Cont. 1pc.
    Package Content packed in EA
    Port count 8
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S5 Series MDU/MBU Enclosures
    Qty Trays 6
    Splice Capacity 96
    Technical Description The S5 enclosure is configured with the HellermannTyton 900µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 6 900µm trays giving a maximum of 96 900µm 3A fibre splices. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. 2 LC Quad adaptor connection plates are fitted with 24 LC APC quad adaptors which are connected to 12 1:8 PLC bare end to LC APC PLC Splitters to provide 96 customer connection points. The PLC splitters are housed on the splitter trays and the connectorised outputs are routed via the IR fibre management system to the adaptors. A loop storage basket and loop storage manager are fitted for management of both incoming and outgoing cables and are located on either side of the fibre management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    Type MDU-S5-BLMX02CP024B121:8
    Type of Tray Versatile Routing ME
    Variant Indoor/Outdoor FTTx Enclosures

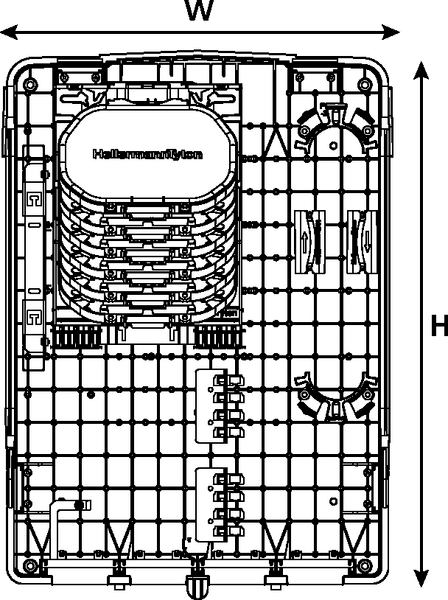

    Depth (D) 165mm
    Height (H) 568mm
    Width (W) 375mm
    IP-Rating IP54
    GTIN-13 / EAN 5022660164347
