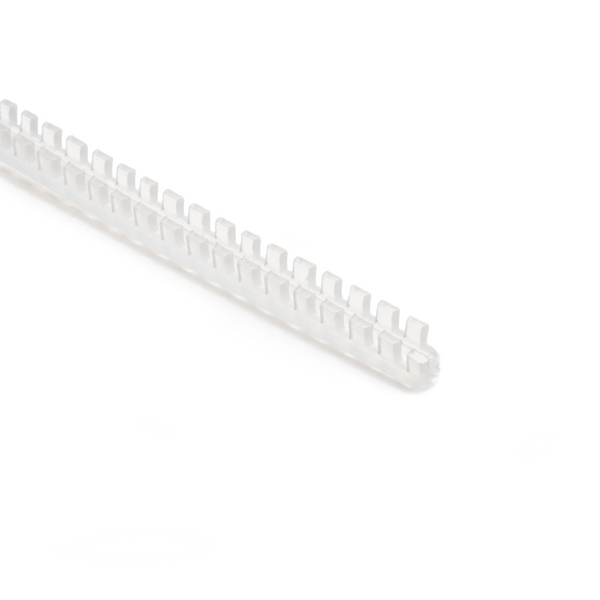

Edge protection 1.3-2.1 mm, Polyethylene, natural, 25 m reel
Art.-No. 251-10209
| G51PB-PE-NA
|
Details
- Very flexible
- Easily and securely applied without adhesives
- Provides effective, orderly-looking protection
- Flexiform G51P made of polyethylene offers general purpose edge protection
- Flexiform G51N made of PA6 offers very good abrasion resistance
- Flexiform G51T made of PTFE offers excellent resistance to high temperatures and most chemicals
More products in this product group:
| Application | Flexiform edge protection is used to protect cables and wires routed through sharp-edged cut-out sections. |
| Colour | Natural (NA) |
| Material | Polyethylene (PE) |
| PART DESCRIPTION | G51PB-PE-NA |
| Pack Cont. | 25m |
| Package Content packed in | reel |
| Part No. | G51PBNT |
| Product Family | Flexiform G51P PE grommet strip |
| Product Group | Edge protection for cut-out sections |
| Type | G51PB |
| Variant | Open |
|
|
| Height (H) | 4.3mm |
| Height (H2) | 2.7mm |
| Panel Thickness | 0.05 - 0.08" |
| Panel Thickness max. | 1.3 - 2.1mm |
| Panel Thickness max. (imperial) | 0.08" |
| Panel Thickness min. (imperial) | 0.05" |
| Width (W) | 4.6mm |
| Width (W2) | 0.094" |
| Width (W2) | 2.4mm |
| for Panel Thickness min - max | 1.3 - 2.1 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 9390-99-618-6255, 9390-12-167-9244 |
| Operating Temperature | -30 °C to +80 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 5022660006210 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.0033m³ |
| Packaging 1 - Weight (kg) | 0.2143kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 5000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 195.74kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 9.7ft |
