Right-Angle Shapes, VG style
Art.-No. 411-57020 | 1157-4-G-PO-X-BK |  Details

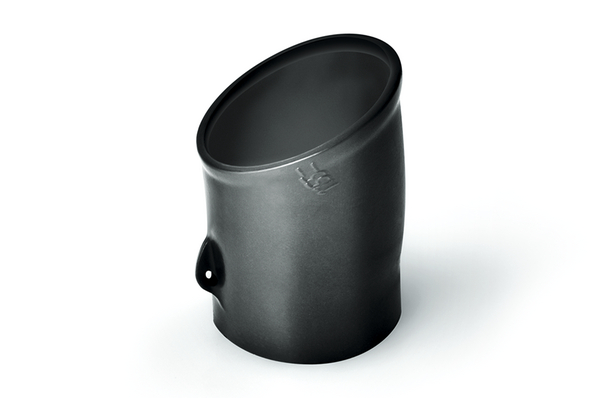

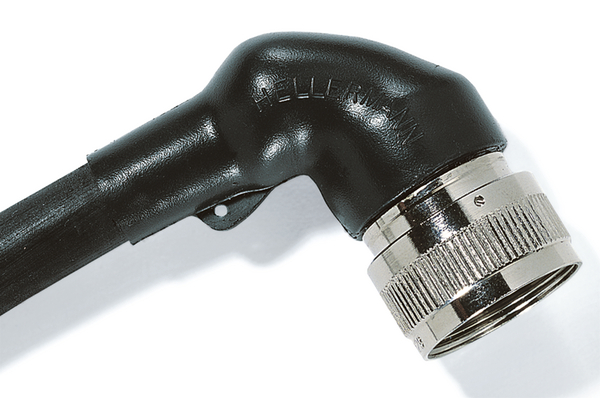

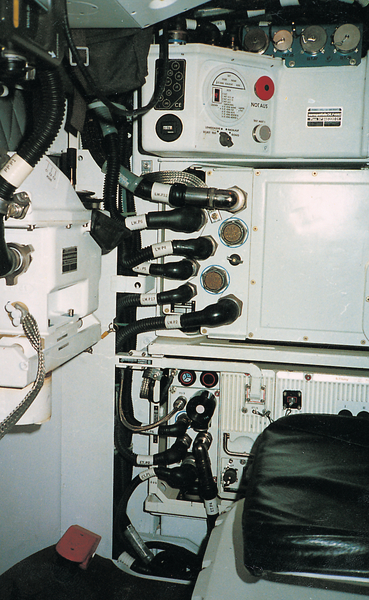

1152-4-G recovered onto a connector.

    • Used in conjunction with a circular grooved adaptor
    • Provides strain relief and an environmental seal
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1157-4-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Part No. 11574G
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, VG style
    Shrink Ratio up to 3:1
    Type 1157-4-G
    Variant For plug

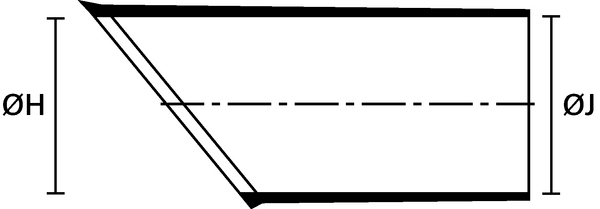

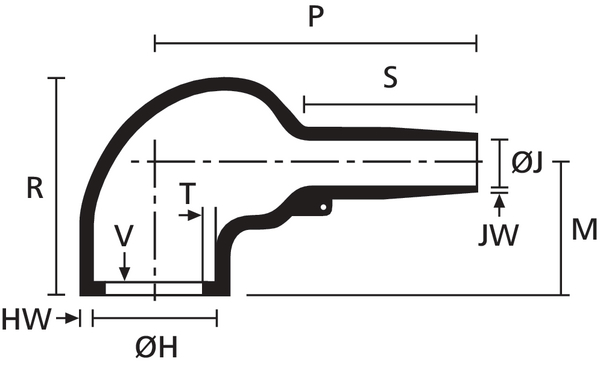

    Angle 90
    Flexibility semi rigid
    HW ± 20 % 2mm
    JO ± 10 % 16mm
    JW ± 20 % 1mm
    JW ± 30 % 1mm
    M nom. 30mm
    P ± 10 % 55mm
    R ± 10 % 45mm
    S nom. 16mm
    S ± 10 % 30mm
    T ± 10 % 1.7mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    V ± 10 % 3mm
    ∅H max. b 28.5mm
    ∅H min. a 43mm
    ∅J max. b 10mm
    ∅J min. a 43mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-12-188-1948
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660416491
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0006m³
    Packaging 1 - Weight (kg) 0.013001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
