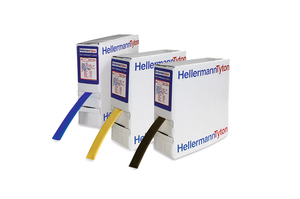

Commercial Grade Polyolefin
Art.-No. 911-01228 | CP48R-BK |  Details

    • Ideal for providing insulation of electrical connections, terminals, components and wiring systems
    • Requires a minimum shrink temperature of 120 °C
    • Well suited to manual as well as automatic methods of application
    • Suitable for use as a continuous insulation sleeve in a variety of industrial applications
    Downloads Datasheet
    Colour Black (BK)
    Description HEATSHRINK CP 4.8/2.4mm BLACK 16m
    PART DESCRIPTION CP48R-BK
    Pack Cont. 16m
    Package Content packed in box
    Part No. CP48RBK
    Product Family CP Mini Reels
    Product Group Commercial Grade Polyolefin
    Shrink Ratio 2:1
    Type CP48R
    Length (L) 16m
    Longitudinal Change After Shrinkage -5% max.
    Recov. ∅ d max. 2.4mm
    Supplied ∅ D min. 4.8mm
    Wall (WT) 0.5mm
    Dielectric Strength 25kV/mm
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242011979
