Heat Shrink Joint Kits
Art.-No. 911-01207 | HSJKL2550-PO-X-BK |  Details

    • Excellent impact and abrasion resistance
    • Excellent environmental and UV properties
    • Hot melt adhesive ensures excellent protection against moisture
    • High electrical insulation properties
    • Excellent strain relief and mechanical protection
    • Quick and easy installation

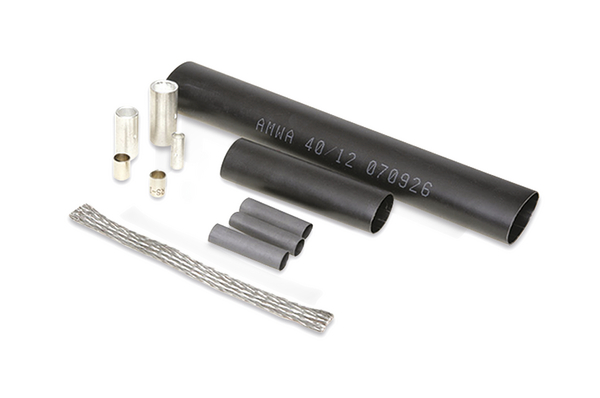

    • Kit contains inner, outer and 4 ferrule heat shrink sleeves, 2 roll springs, tinned copper braid and instruction leaflet.
    Show more
    Downloads
    Application The Standard Heat Shrink Joint Kit contains inner, outer and 4 ferrule heat shrink sleeves, 2 roll springs, tinned copper braid and an instruction leaflet. Due to variations in cable sizes, ferrules are not included.
    Colour Black (BK)
    Description HEAT SHRINK JOINT KIT 25-50 LOW VOLTAGE
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION HSJKL2550-PO-X-BK
    Pack Cont. 1pc.
    Part No. HSJKL2550
    Product Family HSJKL (PO-X) Standard Kits
    Product Group Heat Shrink Joint Kits
    Shrink Ratio 2:1
    Type HSJKL2550
    Wire Size Range (mm²) 25.0-50.0mm²
    Dielectric Strength 20kV/mm
    Dielectric Strength test method ASTM D2671
    Min. Shrink Temperature - °C +120 °C
    ROHS compliant Yes
    Specifications
    Water Absorption 0.15%
    GTIN-13 / EAN 6005242084119
