Heat Shrink Joint Kits
Art.-No. 911-01211 | HSJKS616 |  Details

    • Excellent impact and abrasion resistance
    • Excellent environmental and UV properties
    • Hot melt adhesive ensures excellent protection against moisture
    • High electrical insulation properties
    • Excellent strain relief and mechanical protection
    • Quick and easy installation
    Show more
    Downloads

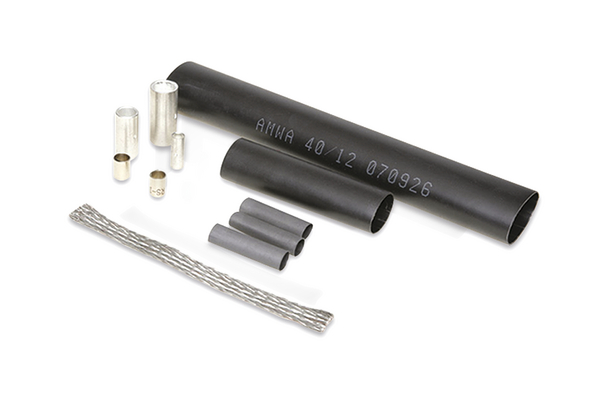

    Application The Submersible Heat Shrink Joint Kit contains inner, outer and 4 ferrule heat shrink sleeves and an instruction leaflet. Due to variations in cable sizes, ferrules are not included.
    Description HEAT SHRINK JOINT KIT SUBMERSIBLE 6-17
    PART DESCRIPTION HSJKS616
    Pack Cont. 1pc.
    Part No. HSJKS616
    Product Family HSJKS (PO-X) - Submersible Kits
    Product Group Heat Shrink Joint Kits
    Shrink Ratio 2:1
    Type HSJKS616
    Wire Size Range (mm²) 6.0-16.0mm²
    Dielectric Strength 20kV/mm
    Dielectric Strength test method ASTM D2671
    Min. Shrink Temperature - °C +120 °C
    ROHS compliant Yes
    Specifications
    Water Absorption 0.15%
    GTIN-13 / EAN 6005242085918
