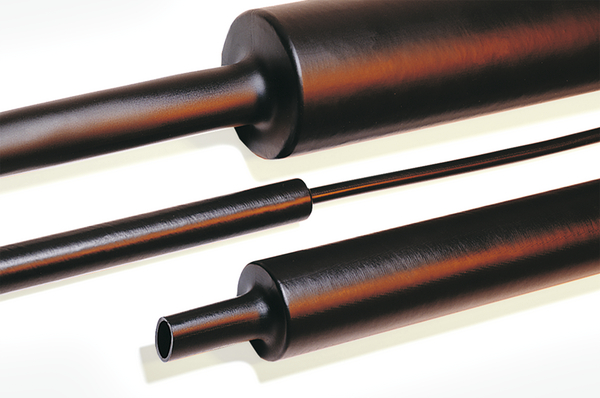

Medium wall adhesive lined shrink tubing with maritime approval
Art.-No. 911-01576 | IMCSA5018-PO-X-BK |  Details

Medium wall unlined tubing MU47.

    • Shrink ratio minimum 3:1
    • Operating temperature -55 °C to 110 °C
    • Excellent impact and abrasion resistance
    • Excellent environmental and UV resistance
    • High electrical insulation properties
    • Colours - black
    • Minimum shrink temperature 120 °C
    Show more
    Downloads Datasheet
    Application IMCS-A is an adhesive lined medium wall tubing with outstanding insulation and environmental sealing properties. The product is UV resistant and has excellent mechanical properties.
    Colour Black (BK)
    Description HEATSHRINK IMCSA 50/18mm
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION IMCSA5018-PO-X-BK
    Part No. IMCSA5018
    Product Group Medium wall adhesive lined shrink tubing with maritime approval
    Shrink Ratio 3:1, up to 4:1
    Type IMCSA5018
    Longitudinal Change After Shrinkage -10% max.
    Recov. ∅ d max. 18.0mm
    Supplied ∅ D min. 50.0mm
    Thickness of Adhesive (TA) nom. 0.8mm
    Wall (WT) 3.3mm
    Dielectric Strength 20kV/mm
    Dielectric Strength test method IEC 684 P2
    Flammability ASTM D876, (IMCS-A outer layer only)
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -55 °C to +130 °C (IMCS-A +75 °C)
    GTIN-13 / EAN 6005242024146
