Pre-Insulated Terminals
Art.-No. 911-00599 | 3R35-YE |  Details

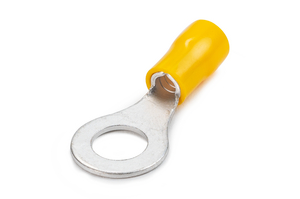

Ring single grip terminal, 3R series.

    Colour Yellow (YE)
    Description TERMINAL P-I RING YELLOW 3.5mm
    PART DESCRIPTION 3R35-YE
    Pack Cont. 100pcs.
    Part No. 3R35
    Product Family Insulated Ring Terminals
    Product Group Pre-Insulated Terminals
    Type 3R35
    Length (L) 22.7mm
    Length (L2) 6.1mm
    Max Current 48A
    Max Voltage 600V
    Stud ∅ 3.7 mm
    Width (W) 7.2mm
    Wire Size Range (mm²) 2.5-6.0mm²
    GTIN-13 / EAN 6005242006760
