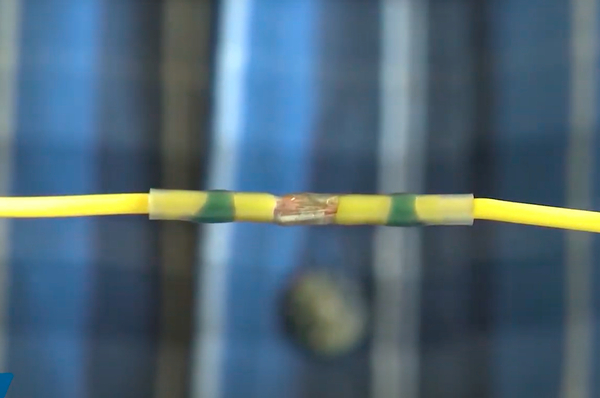

Solder Connector HD 3.5-6mm Butt Blue
Art.-No. 911-02294 | HTELF514-CU/PO |

Copied

    • Quick and permanent join
    • The maximum pull-out strength
    • Excellent conductivity
    • Excellent sealing to prevent corrosion
    • Waterproof connection
    Show more
    Material Copper (CU), Polyolefin (PO)
    PART DESCRIPTION HTELF514-CU/PO
    Part No. HTELF514
    Product Group Solder Connector HD 3.5-6mm Butt Blue
    Type HTELF514
    Length (L) 6mm
    Longitudinal Change After Shrinkage +/-10% max
    Dielectric Strength 0.9kV/mm
    Elongation at break 400%
    IP-Rating IP67
    Min. Shrink Temperature - °C +135 °C
    Volume Resistance 10¹⁵ Ω cm
    Water Absorption 0.1%
    GTIN-13 / EAN 6005243017482
    Art.-No.: 911-02294 Details Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
