Pre-Insulated Terminals
Art.-No. 911-00548 | PRPK14-RD |  Details

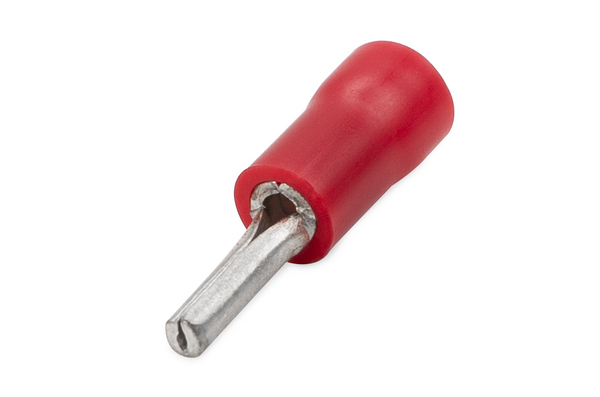

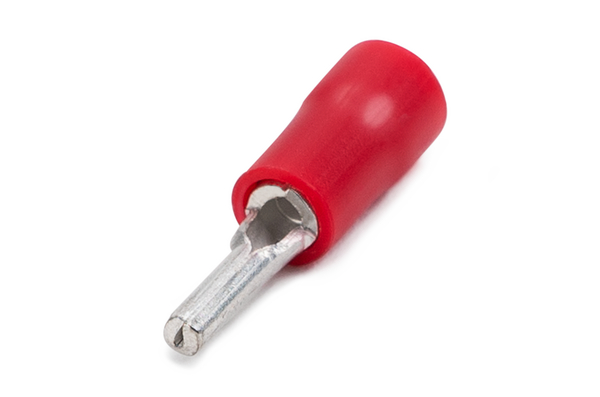

Pin connector single grip terminal, 1P10.

    Colour Red (RD)
    Description TERMINAL PRE-PACK 1P10 10
    PART DESCRIPTION PRPK14-RD
    Pack Cont. 10pcs.
    Part No. PRPK14
    Product Family Insulated Pin Terminals
    Product Group Pre-Insulated Terminals
    Type PRPK14
    Length (L) 19.8mm
    Length (L2) 10.0mm
    Max Current 19A
    Max Voltage 600V
    Width (W) 1.9mm
    Wire Size Range (mm²) 0.34-1.57mm²
    GTIN-13 / EAN 6005242045516
