Pre-Insulated Terminals
Art.-No. 911-00680 | T1FB10-RD |  Details

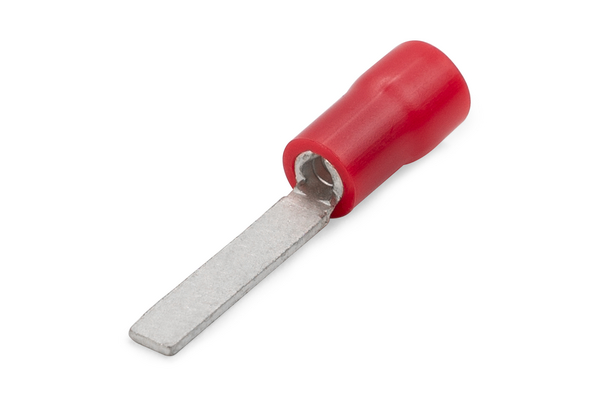

Flat blade single grip terminal, 1FB series.

    • Inner copper tube (Twingrip)
    Colour Red (RD)
    Description TERMINAL T-G BLADE RED 2.3mm
    PART DESCRIPTION T1FB10-RD
    Pack Cont. 100pcs.
    Part No. T1FB10
    Product Family Insulated Blade Terminals
    Product Group Pre-Insulated Terminals
    Type T1FB10
    Length (L) 19.8mm
    Length (L2) 10.0mm
    Max Current 19A
    Max Voltage 600V
    Width (W) 2.3mm
    Wire Size Range (mm²) 0.34-1.57mm²
    GTIN-13 / EAN 6005242017599
