28/04/2025

Pre-Insulated Terminals
Art.-No. 911-00677 | T1S4A-RD |

Copied

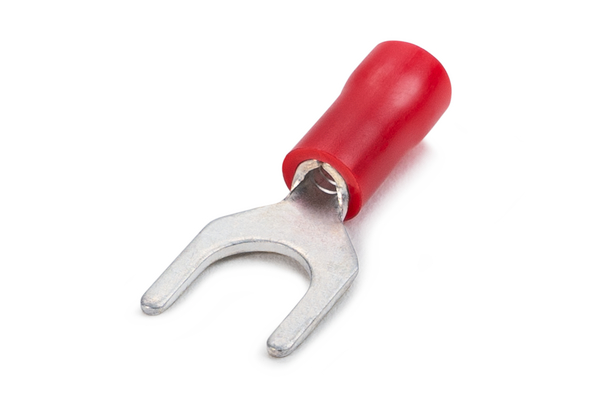

Spade/Fork single grip terminal, 1S series.

    • Inner copper tube (Twingrip)
    Colour Red (RD)
    Description TERMINAL T-G SPADE RED 4mm
    PART DESCRIPTION T1S4A-RD
    Pack Cont. 100pcs.
    Part No. T1S4A
    Product Family Insulated Spade Terminals
    Product Group Pre-Insulated Terminals
    Type T1S4A
    Length (L) 21.0mm
    Length (L2) 6.5mm
    Max Current 19A
    Max Voltage 600V
    Stud ⌀ 4.3 mm
    Width (W) 6.4mm
    Wire Size Range (mm²) 0.34-1.57mm²
    GTIN-13 / EAN 6005242017452
