Thermal Transfer Printer 300 dpi
Art.-No. 556-00400 | TT431-PL-GY | Details

More products in this product group:

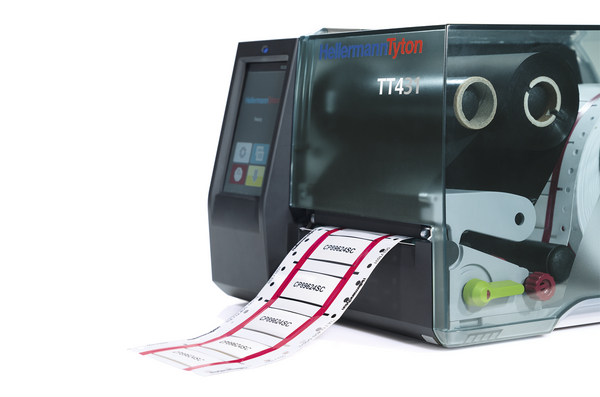

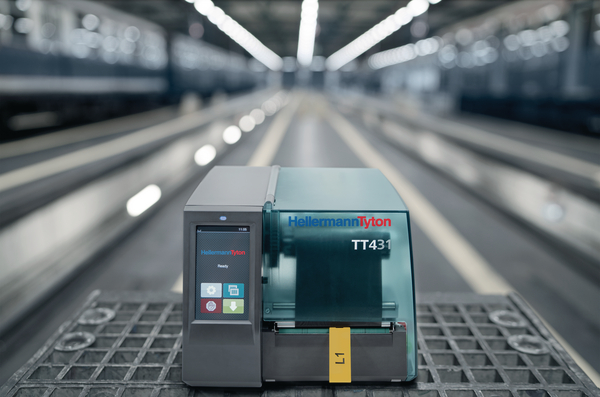

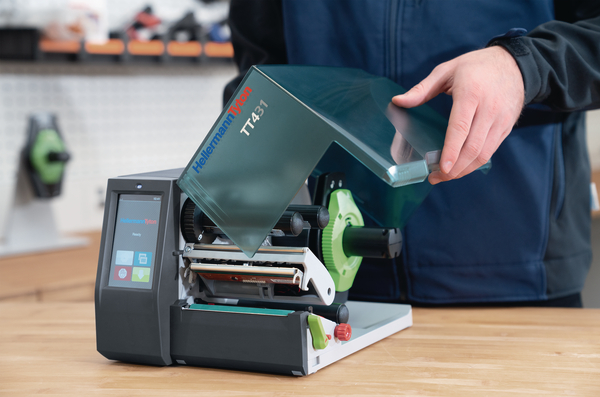

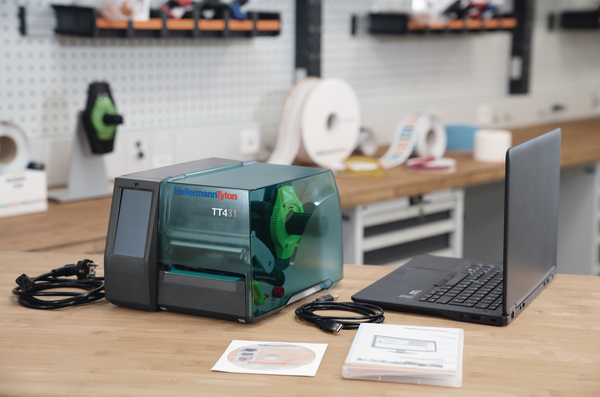

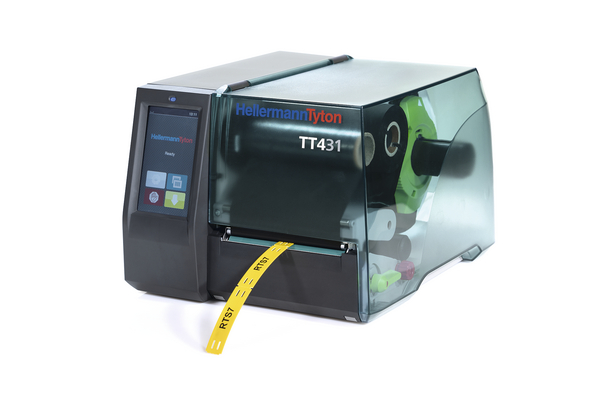

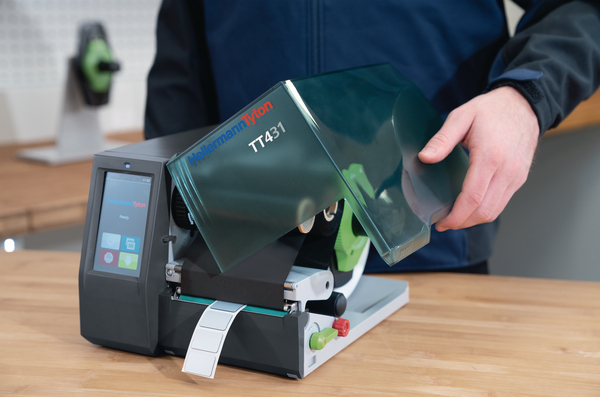

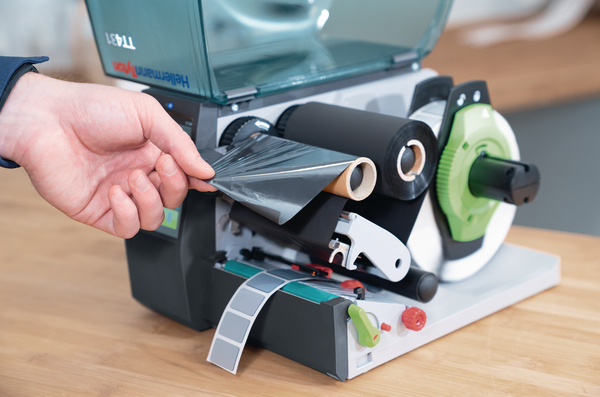

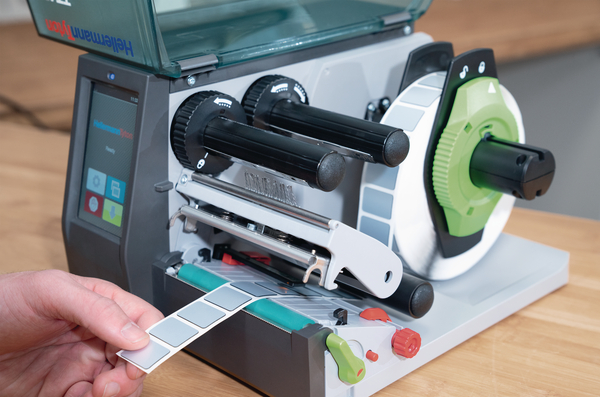

Application	The TT431 thermal transfer printer is perfect for printing on HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. Thanks to its low weight and compact construction, the TT431 integrates seamlessly into any workstation. It is easy to use due to its intuitive colour LCD touch display and clear status messages which can be shown in multiple languages. The optional cutter and perforator make this printer ideal for a wide range of applications. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be. For optimal operation, we recommend our TagPrintPro software.
Colour	Grey (GY)
Material	Plastic (PL)
PART DESCRIPTION	TT431-PL-GY
Pack Cont.	1pc.
Package Content packed in	carton
Print resolution DPI	300dpi
Product Family	TT431 Small to medium volume printing
Product Group	Thermal transfer printer
Type	TT431

Depth (D)	322mm
Height (H)	189mm
L x H x W	322 mm x 189 mm x 253
Label Width Max (imperial)	4.16"
Label Width Min (imperial)	.39"
Print Material Height Max (metric)	4000mm
Print Material Height Min (metric)	5.00mm
Print Material Width Max (metric)	105.7mm
Print Material Width Min (metric)	10.00mm
Print Method	thermal transfer print
Width (W)	253mm

ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
Interfaces	USB 2.0, Ethernet 10/100 Base T, RS232
Max. Print Width	105.70mm
Print Head Type	300 dpi, flat type
Print Speed	up to 150 mm/s
Printer Memory	256MB RAM
ROHS compliant	Yes
Specifications
Specifications	2014/35/EU, DIN EN 55024:2011-09, DIN EN 55024:2016-05, DIN EN 55032:2012-12, DIN EN 55032:2016-02, DIN EN 55032 rectification 1:2013-04, DIN EN 61000-6-2:2006-03, DIN EN 61000-6-2 rectification 1:2011-06, EN 55024:2011-09, EN 61000-6-2, FCC eCFR 47 FCC part 15 - subpart B, limit class A
Supported Barcodes	Standard and 2D
