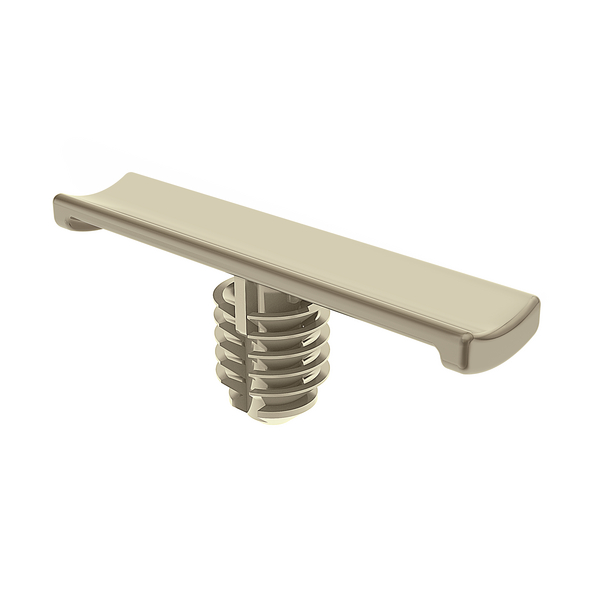

Bundling clip for hole (round), L=37.0mm, natural, 10000pcs.
Art.-No. 151-00467 | TC4FT6LG-A-PA66HIRHS-NA |  Details

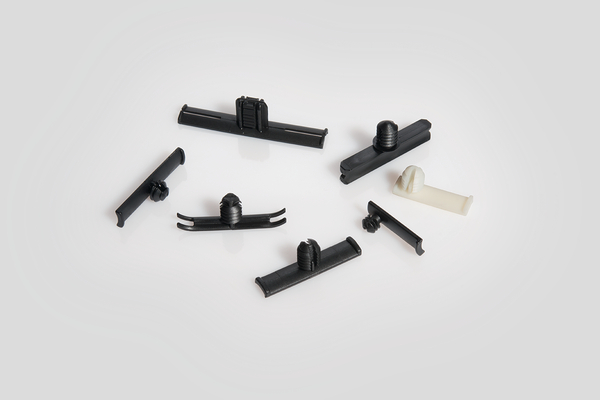

Bundling Clips with fir tree for a variety of applications with a wide range of panel thicknesses and drilled holes.

    • Easy to install without the need for a tool
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Holding tabs prevent the tie slipping sideways
    • Versions for oval holes feature anti-twist protection
    Show more
    Downloads CAD-Download Datasheet
    Colour Natural (NA)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TC4FT6LG-A-PA66HIRHS-NA
    Pack Cont. 10000pcs.
    Package Content packed in bag
    Part No. TC4FT6LG
    Product Group Bundling Clips with Fir Tree
    Type TC4FT6LG-A
    Bundling Bar Length 1.45"
    Bundling Bar Length 37.0mm

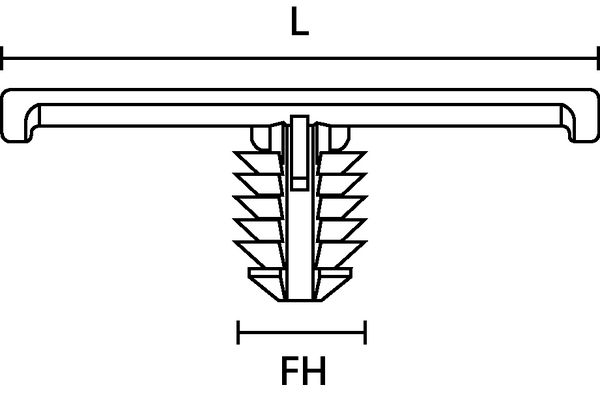

    Length (L) 37.0mm
    Panel Thickness 0.02 - 0.20"
    Panel Thickness max. 0.6 - 5.1mm
    Panel Thickness max. (imperial) 0.20"
    Panel Thickness min. (imperial) 0.02"
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.6 - 5.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026275338
    Packaging 1 - Qty 10000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 6.946663kg
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 10.716663kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 235.34kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
