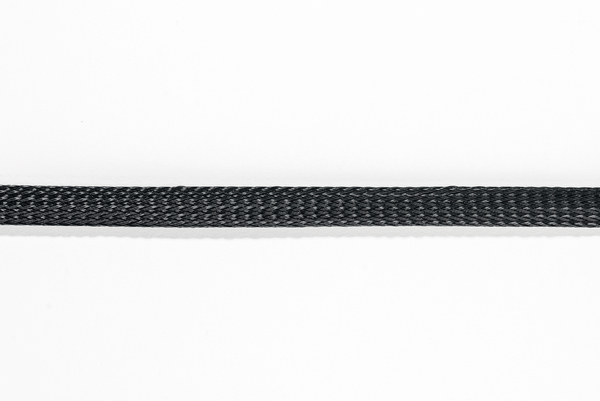

High expansion braided sleeving black Ø12 mm
Art.-No. 170-00120
| HEGPX12-PET-BK
|
Details
- Made of sturdy polyester
- Highly flexible
- High rate of expansion
- Easy to apply over irregular shapes
- Good abrasion resistance
More products in this product group:
| Application | Helagaine HEGPX is used whenever a higher expansion rate is required. HEGPX is particularly suitable for use in the automotive industry, panel building and in electrical appliances. |
| Colour | Black (BK) |
| Key product features | highly expandable |
| Material | Polyester (PET) |
| Open, post termination (Yes/No) | No |
| PART DESCRIPTION | HEGPX12-PET-BK |
| Pack Cont. | 100m |
| Package Content packed in | metre |
| Part No. | 17000120 |
| Product Family | Helagaine HEGPX |
| Product Group | High-expansion polyester braided sleeving |
| Type | HEGPX12 |
Download
| ELV compliant (Article 4 - 2) | YES |
| EN 45545-2 Results | R22 HL2, R23 HL2 |
| Flammability | UL 94 V2, FMVSS 302 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | +250 °C |
| Operating Temperature | -50 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | EN 45545-2 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E197993 |
|
|
|
| GTIN-13 / EAN | 4031026125497 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00958m³ |
| Packaging 1 - Weight (kg) | 1.47kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 3 - Height (m) | 0.385m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0556m³ |
| Packaging 3 - Weight (kg) | 7.5kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 0.925m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 6000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.888m³ |
| Packaging 4 - Weight (kg) | 111.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 328.0ft |
| Reel Length | 100m |
