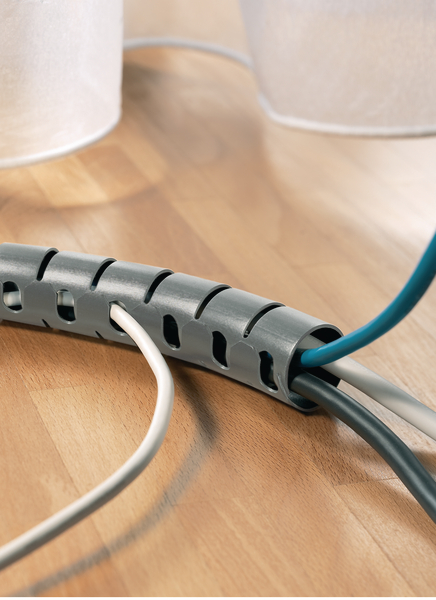

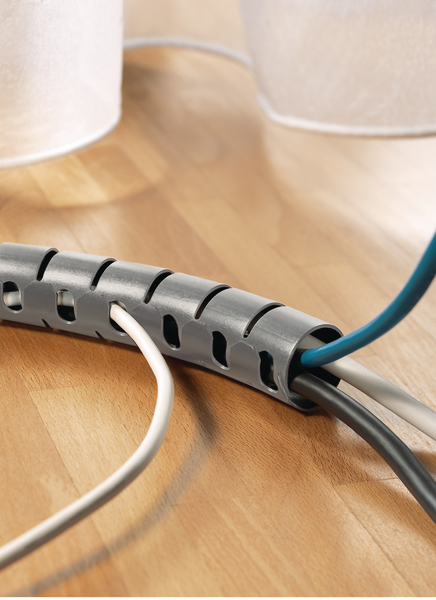

Helawrap Cable Cover
Art.-No. 911-01760 | HWPP20-PP-BK |

Copied
Complete cable management for home and office.

    • Ideal solution for bundling, protecting and fixing cables
    • Quick and effortless to apply
    • Good abrasion protection
    • Special profile enables branching off cable at any point
    • Can be removed and reapplied often
    • Available in several colours and sizes
    • Handy applicator tool included
    Show more
    Downloads
    Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
    Colour Black (BK)
    Description HELAWRAP + APPLICATOR BLACK 20mm 2m
    Material Polypropylene (PP)
    PART DESCRIPTION HWPP20-PP-BK
    Pack Cont. 2m
    Part No. H20B
    Product Family HWPP in polypropylene
    Product Group Helawrap Cable Cover
    Type HWPP20
    Bundle ⌀ min. 18mm
    Bundle Diameter max (metric) 21mm
    Diameter (D) 19.0mm
    Nominal ⌀ 20mm
    Pitch (P) 16mm
    Wall (WT) 0.95mm
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -60 °C to +110 °C, intermittent +140 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242046711
