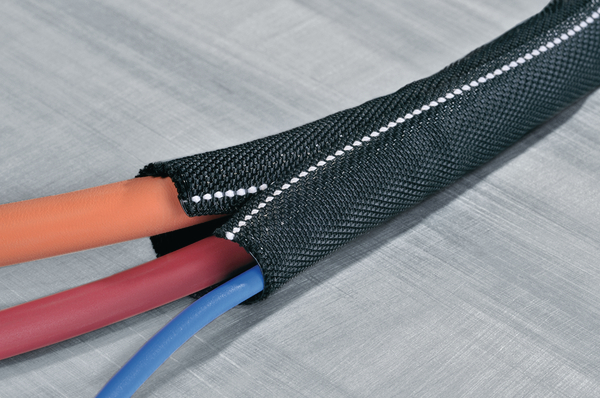

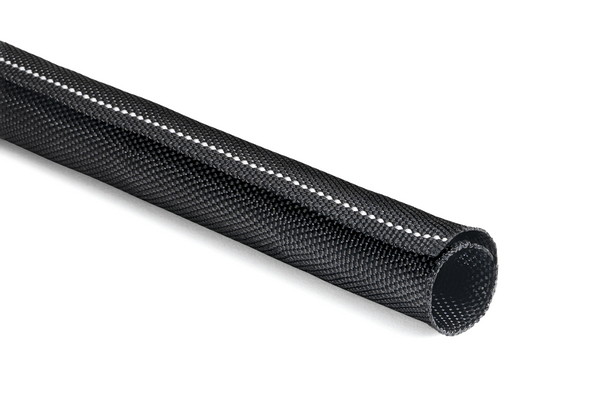

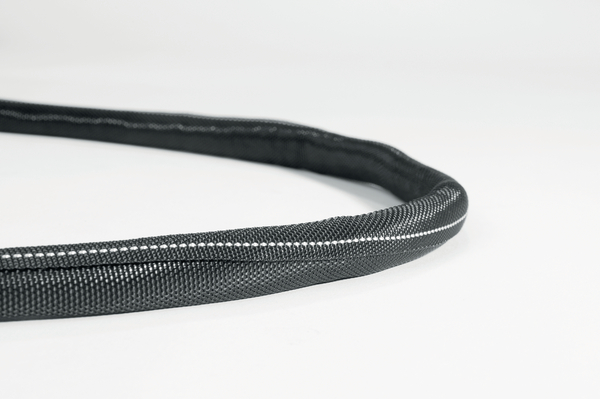

Self-closing sleeving, 29 - 32 mm, PET, flame-retardent, black with white identification yarn, 15 m
Art.-No. 170-01107
| Twist-In-FR 32-PET-BK
|
Details
- Self-closing sleeve made from polyester
- Optimal fire protection
- Certified conformity with railway standard EN45545-2
- Quick and easy installation and removal
- Ideal for retro-fitting
- Allows access to bundle for assembly, inspection and maintenance
More products in this product group:

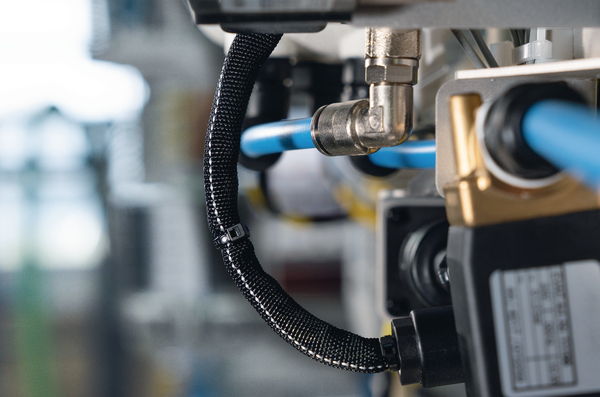

| Application | Helagaine Twist-In-FR is used wherever fire protection is essential, such as in the railway, aerospace and shipbuilding industries. |
| Colour | Black with White Identification Yarn (BKIDWH) |
| Key product features | self closing, flame retardant |
| Material | Polyester (PET) |
| Open, post termination (Yes/No) | Yes |
| PART DESCRIPTION | Twist-In-FR 32-PET-BK |
| Pack Cont. | 15m |
| Package Content packed in | reel |
| Part No. | 17001107 |
| Product Family | Helagaine Twist-In-FR |
| Product Group | Self-closing, flame-retardent polyester sleeving |
| Type | Twist-In-FR 32 |
Download
| ELV compliant (Article 4 - 2) | YES |
| EN 45545-2 Results | R22 HL3, R23 HL3 |
| Flammability | FMVSS 302, UL 1441 VW-1 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | +240 °C |
| Operating Temperature | -50 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | ECE R-118-03 Abschnitt 8 / Annex 8, EN 45545-2 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E197993 |
|
|
|
| GTIN-13 / EAN | 4031026404370 |
| Packaging 1 - Height (m) | 0.187m |
| Packaging 1 - Length (m) | 0.38m |
| Packaging 1 - Qty | 15 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.027m³ |
| Packaging 1 - Weight (kg) | 0.94kg |
| Packaging 1 - Width (m) | 0.38m |
| Packaging 3 - Height (m) | 0.385m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0556m³ |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.315m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.262m³ |
| Packaging 4 - Weight (kg) | 55.974kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 15m |
