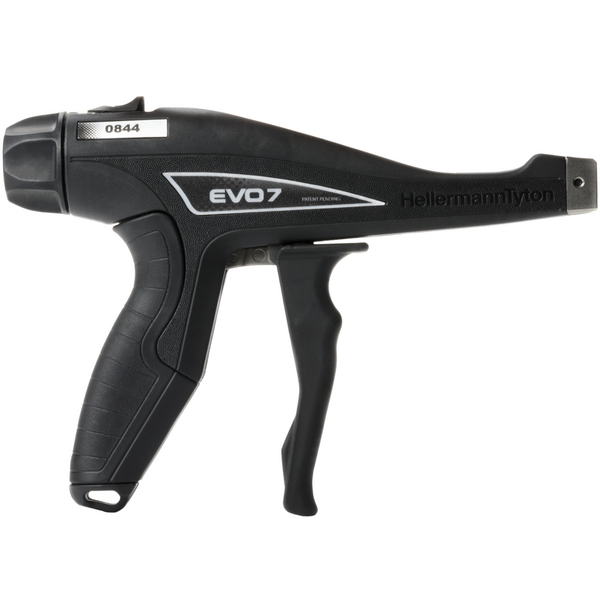

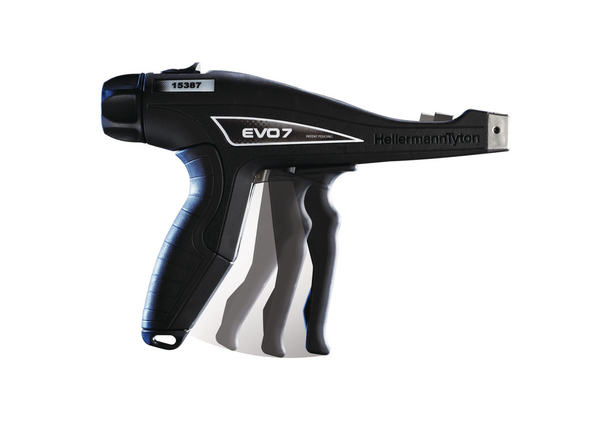

Cable tie tool for 2.5-4.8mm, manual, 0.28kg, black
Art.-No. 110-70083 | EVO7-MET/PL-BK |  Details

The EVO7: Maximum performance with minimum effort.

    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low-maintenance
    • Fast and precise application with minimum effort (TLC mechanism)
    • Convenient and simple tension adjustment
    • Extended, slim nose for use in narrow spaces
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    • Standard grip span (90 mm) and short grip span (80 mm) available
    Show more
    Downloads

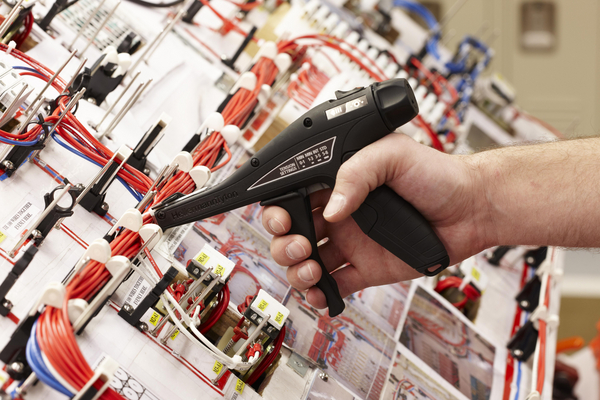

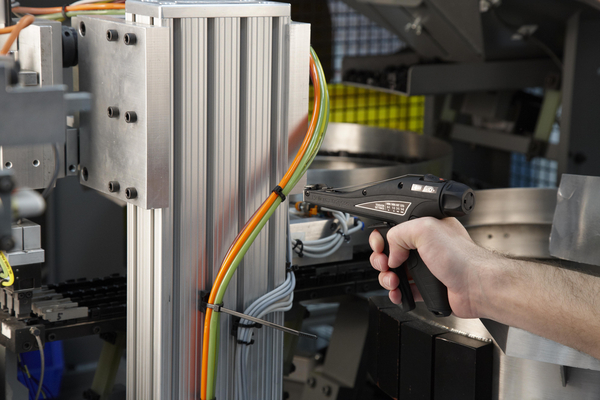

    Application EVO 7 delivers precise tensioning and cut-off of HellermannTyton cable ties while reducing work related risks to quality, productivity and employee safety. For use in OEM applications (ie; Truck and Heavy Equipment, White Goods, Automotive), wire harness assembly and control panel building.
    Colour Black (BK)
    For Cable Tie Width 0.10-0.19"
    For Cable Tie Width 2.5-4.8mm
    For Ties T18, T30, T40, T50, T80, IT18, IT50
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO7-MET/PL-BK
    Pack Cont. 1pc.
    Package Content packed in carton
    Product Family EVO7
    Product Group Manual Processing Tools
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO7
    Strap Width max. 4.8mm
    Strap Width max. (G) 0.19"

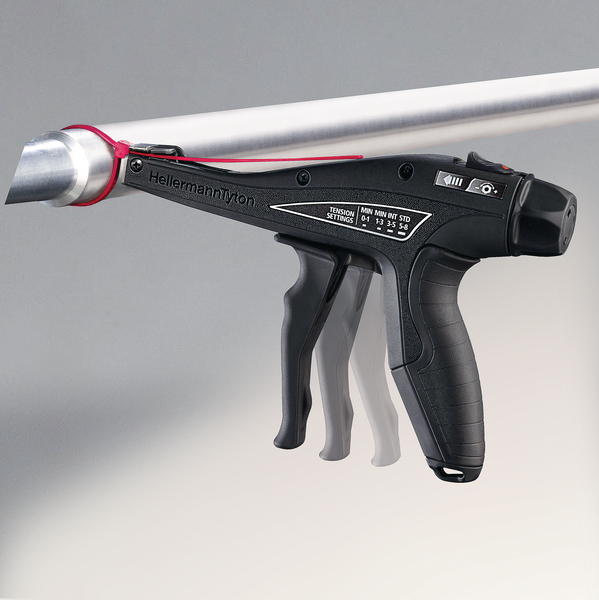

    Tension Setting Adjustable
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Nato number 5120-12-409-3857, 5120-00-781-7891
    ROHS compliant Yes
    Specifications
    Specifications CAGE Code 53421
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    US Gov. Designation MS90387-1, SAE-AS90387
    UV-Stabilised No
    GTIN-13 / EAN 4031026438535
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.235m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00239m³
    Packaging 1 - Weight (kg) 0.78kg
    Packaging 1 - Width (m) 0.185m
    Packaging 3 - Weight (kg) 12.28kg
    UNSPSC Key 27112410
