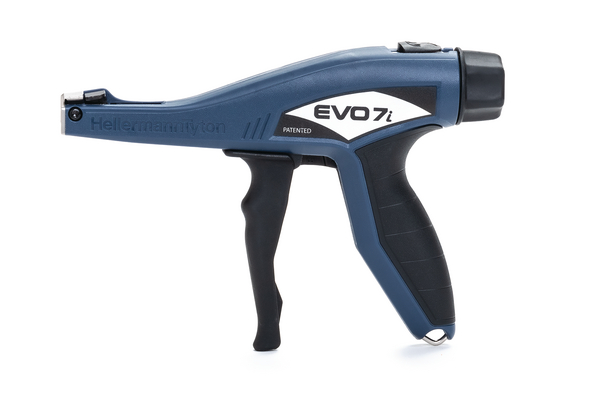

Cable tie tool for 2.5 - 4.8mm, manual, 0.281kg, blue
Art.-No. 110-77001 | EVO7i-MET/PL-BU |  Details

Manual tensioning tool EVO 7i.

    • Ergonomic tool for use anywhere
    • Extremely low maintenance
    • Adjustable preset tension device
    • Tensions and automatically cuts HellermannTyton cable ties up to 4.8mm wide
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    Show more
    Downloads
    Application HellermannTyton's EVO7i mechanical hand tool was ergonomically designed to reduce the risks of repetitive stress injuries to operators while concurrently increasing productivity. The EVO7i Tension/Lock/Cut Technology delivers performance, safety and comfort for the operators. The “i” in EVO 7i stands for industrial. With enhanced features for extended performance, HellermannTyton continues to deliver the tools preferred by manufacturers. • Tested to over one million cycles, for unparalleled performance • Factory-calibrated tensioning provides consistently reliable results for demanding applications • Short and standard span for different sized hands, as opposed to a one-size approach • Customer serviceable blade and nosepiece –backward compatible with EVO 7 • 12 months warranty included
    Colour Blue (BU)
    Description EVO7i
    For Cable Tie Width 0.10 - 0.19"
    For Cable Tie Width 2.5 - 4.8mm
    For Ties T18, T30, T40, T50, T80, IT18, IT50
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO7i-MET/PL-BU
    Pack Cont. 1pc.
    Package Content packed in box
    Product Family EVO7i up to 4.8 mm strap width
    Product Group Manual tensioning tool plastic housing
    Strap Thickness max. 1.5mm
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO7i
    Height (H) 137.3mm
    Length (L) 191.0mm
    Strap Width max. 4.8mm
    Tension Setting Adjustable
    Width (W) 34.2mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026621791
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.235m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00239m³
    Packaging 1 - Weight (kg) 0.489kg
    Packaging 1 - Width (m) 0.185m
    UNSPSC Key 27112410
