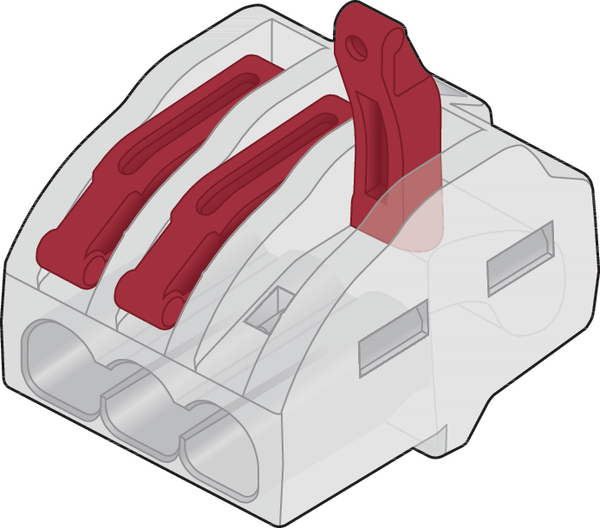

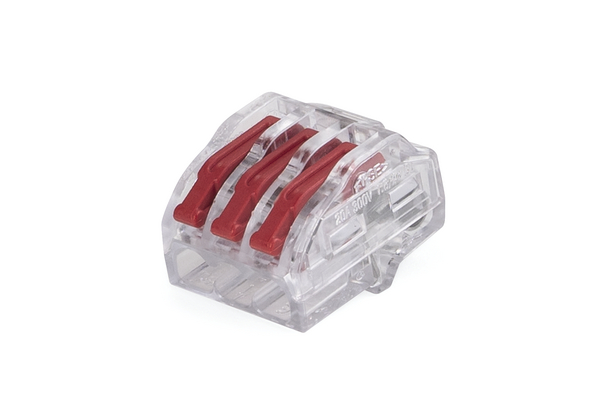

Push-in wire connector, 3 conductors, 0.2 to 4.0 mm² all types of wire, transparent, 500pcs.
Art.-No. 148-90066 | HCRN-3-PC-CL |  Details

HelaCon Releasable HCRN-3.

    • Universal push-in wire connector for solid, stranded and fine-stranded wires
    • Compact size connector
    • Wire clamping range: 0.2 - 4.0 mm²

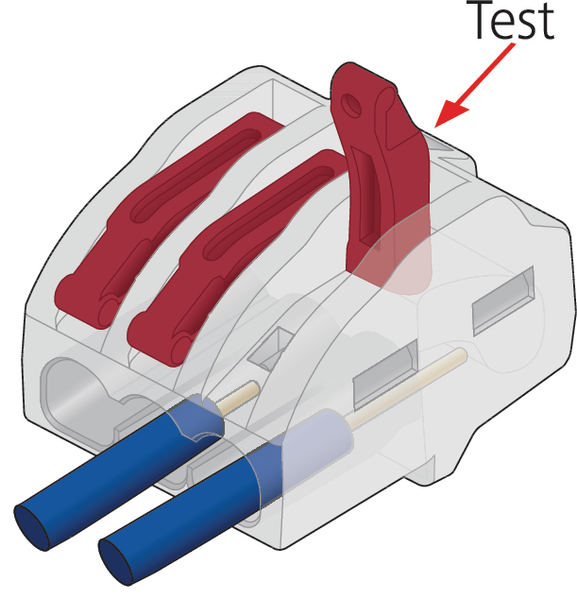

    • Separate voltage test entry on the top
    • For proper fixing that can be visually checked through transparent housing
    • Safe application, installation and maintenance
    Show more
    Downloads
    Application The HelaCon Plus Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required.
    Colour Transparent (CL)
    Material Polycarbonate (PC)
    Number of Conductors 3
    PART DESCRIPTION HCRN-3-PC-CL

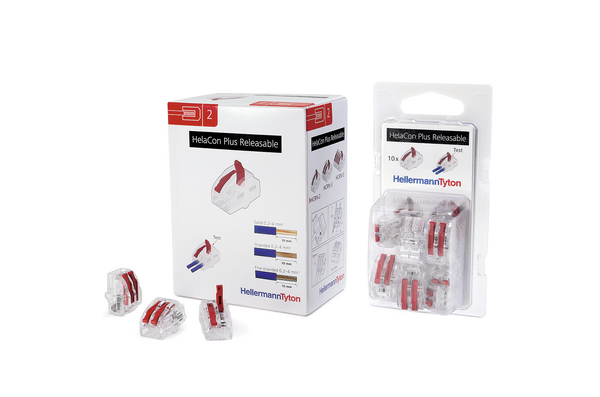

    Pack Cont. 500pcs.
    Package Content packed in pack

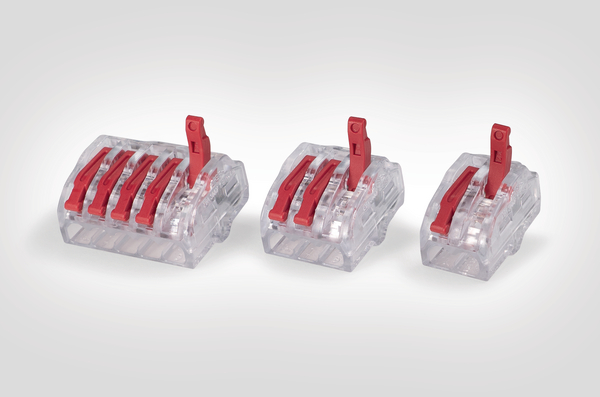

    Product Family HelaCon Plus Releasable
    Product Group Connectors - For all Types of Wire
    Suitable for flexible core (Yes/No) Yes
    Suitable for multi wire core (Yes/No) Yes
    Suitable for solid core (Yes/No) Yes
    Type HCRN-3
    Height (H) 14.0mm
    Length (L) 17.0mm
    Max Current 32A
    Max Voltage 450V
    Stripping Length 10mm
    Width (W) 20.5mm
    Wire Range (VDE) 0.2 to 4.0 mm² all types of wire
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -30 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL 486C
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL OCD link Link
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E316080
    GTIN-13 / EAN 4031026673035
    UNSPSC Key 39131707
