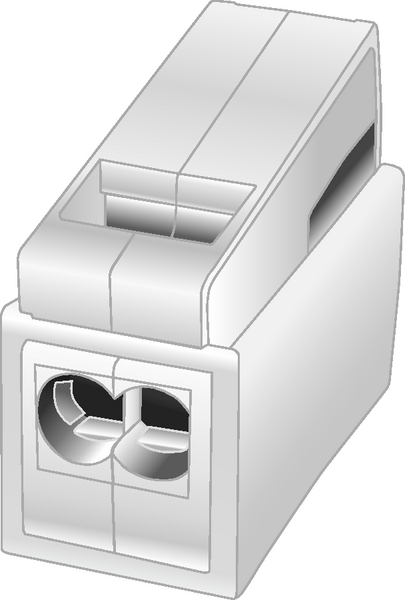

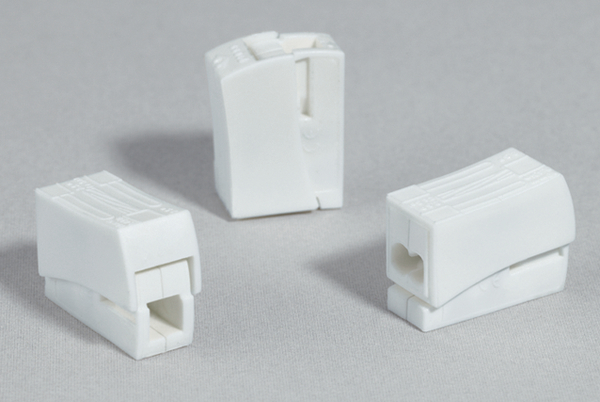

Art.-No. 911-01817 | HECL-2/1-PA66-WH | Details

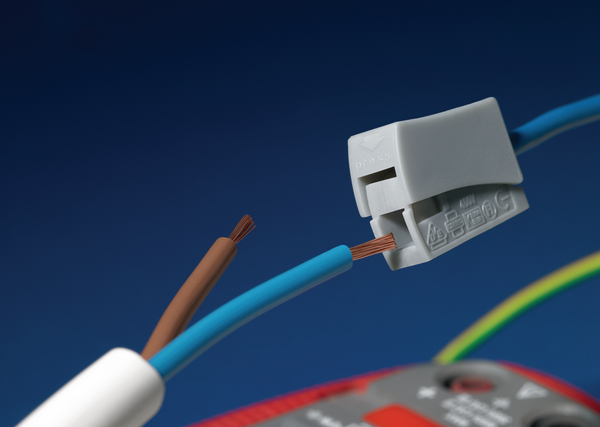

Best suitable to connect solid with flexible wire

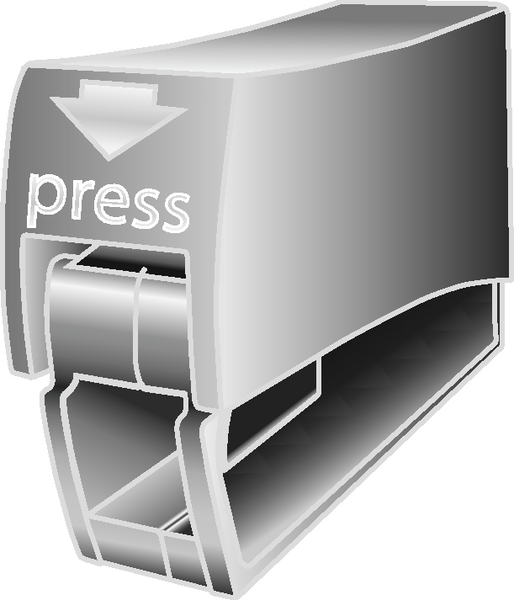

Combines push-in connector with lock / unlock spring mechanism

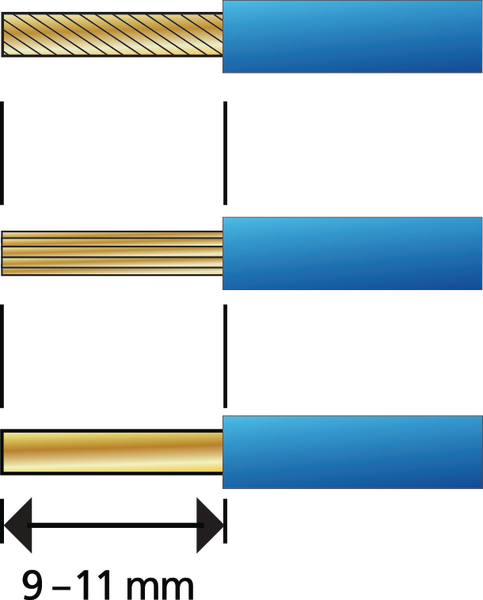

For solid, stranded and fine-stranded conductors at lighting input from 0.5 to 2.5 mm²
For solid wires from 0.75 up to 2.5 mm² on the installation side
Use with typical housing current of 450 V / 24 A

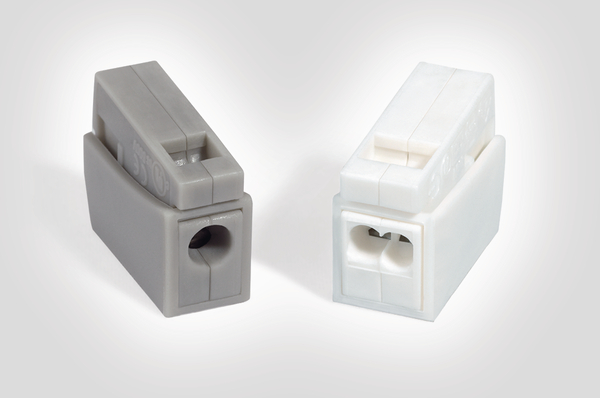

Either one or two inputs for solid conductor on installation side
Very flexible application
Tool-free application for easy, time-saving, safe connection

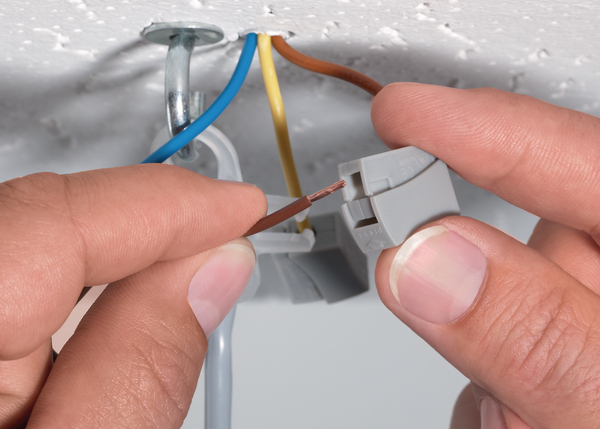

Especially for overhead work and when wires are difficult to access

More products in this product group:

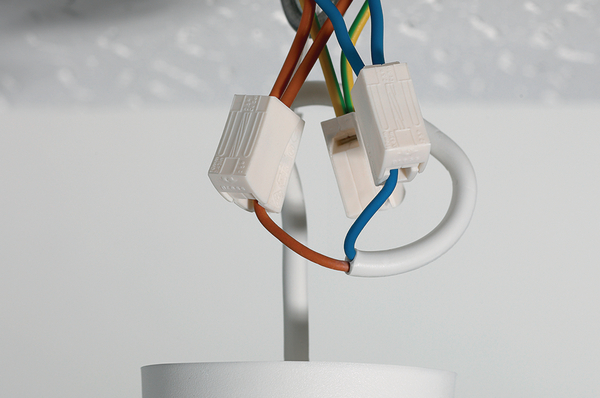

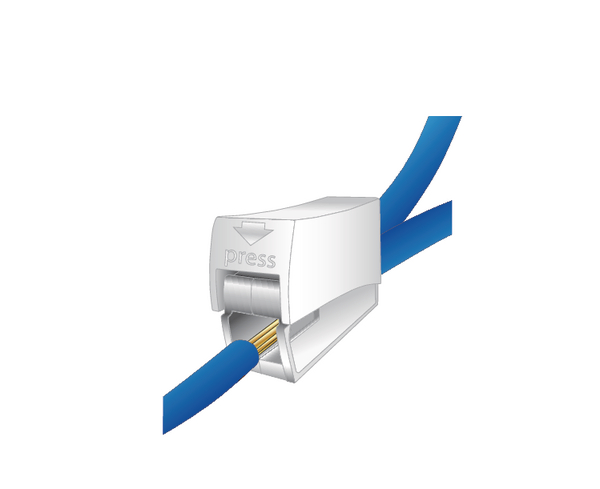

Application	A typical application is lighting installation, where the solid conductor from concealed cabling has to be connected to a flexible conductor for lightings. The 2/1 variant allows the looping through of the supply lines for additional devices. The conductor on the output / lighting side can easily be inserted by pressing the locking mechanism and can be released in the same way at any time. The lighting side can carry any kind of conductor and makes HelaCon Lux connectors also useful to connect devices that carry flexible connecting cables like control devices e.g. for blinds, fans and other drives.
Colour	White (WH)
Description	HELACON LIGHTING QUICK CONN 2WAY WHITE (100PKT)
Material	Polyamide 6.6 (PA66)
Number of Conductors	3
PART DESCRIPTION	HECL-2/1-PA66-WH
Pack Cont.	100pcs.
Package Content packed in	bag
Part No.	HECQ2WT
Product Family	HelaCon Lux
Product Group	Connectors
Type	HECL-2/1

GTIN-13 / EAN

6005242019616
