3A Splice Protector Holder Heatshrink
Art.-No. 857-40298 | BRIDGE-3A |  Details

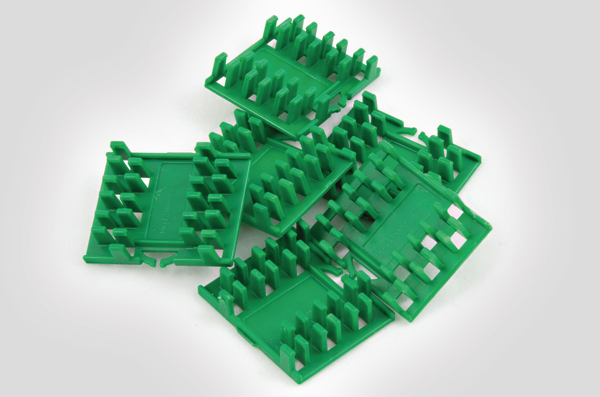

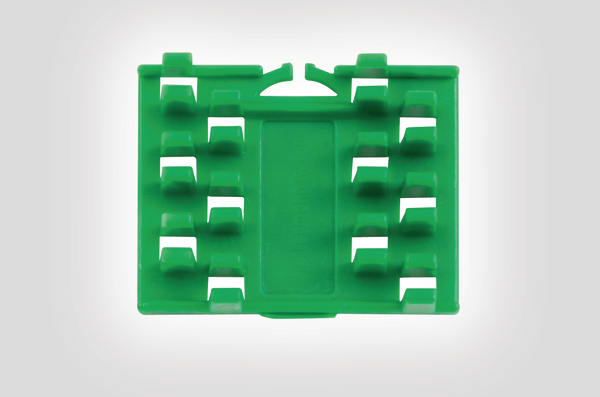

3a Splice Bridges

    • Used to secure different types of splice protector within the splice tray
    • 9 options available for the most common applications
    • Optical splitter/3A or ANT option
    Colour Green (GN)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BRIDGE-3A
    Package Content packed in bag
    Product Family Fibre Splice Tray Accessories
    Product Group 3A Splice Protector Holder Heatshrink
    Splice Capacity 12
    Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts and 900µm IR with takes 3 inserts.
    Type BRIDGE-3A

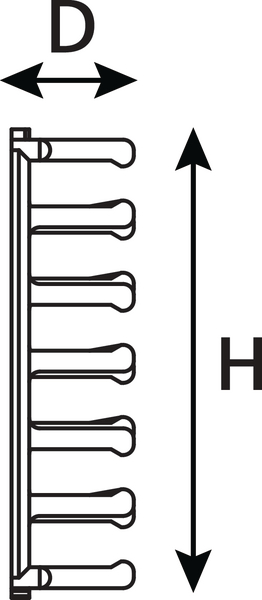

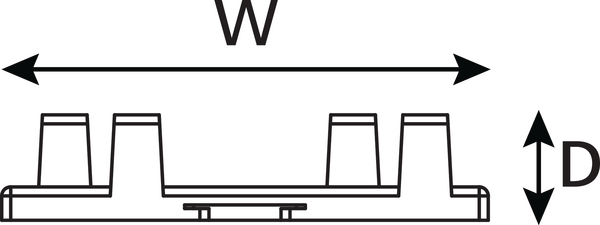

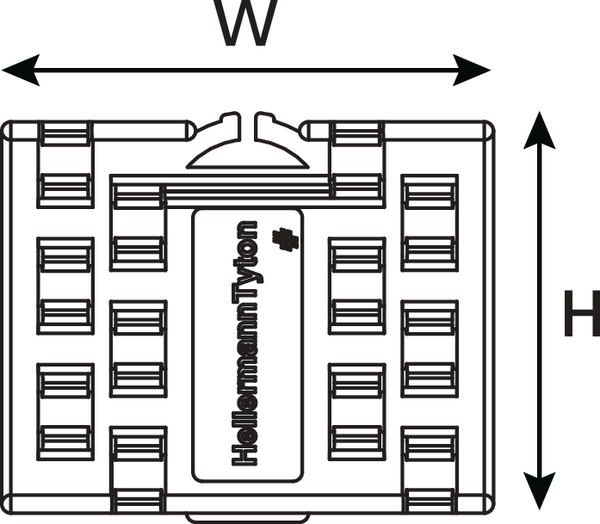

    Depth (D) 5.9mm
    Height (H) 22.5mm
    Recov. ∅ d max. 2.4mm
    Width (W) 27mm
    Hazardous Goods No
    GTIN-13 / EAN 5022660114793
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.01kg
    Packaging 1 - Width (m) 0.02m
