3A Splitter/Splice Protector Holders
Art.-No. 857-40426 | BRIDGE-SP/3A |  Details

3A Splitter Holder

    • Used to secure different types of splice protector within the splice tray
    • 9 options available for the most common applications
    • Optical splitter/3A or ANT option
    Colour Green (GN)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BRIDGE-SP/3A
    Pack Cont. 10pcs.
    Package Content packed in bag
    Product Family Fibre Splice Tray Accessories
    Product Group 3A Splitter/Splice Protector Holders
    Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. The optical splitter splice bridges will accept 2 x 60 x 7 x 4mm optical splitters plus 2 3A or ANT splices. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts.

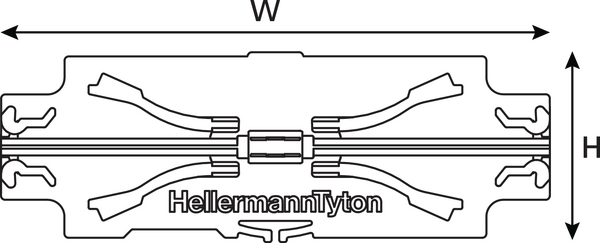

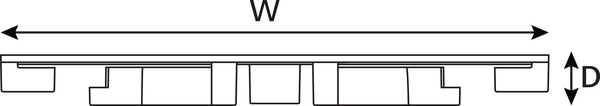

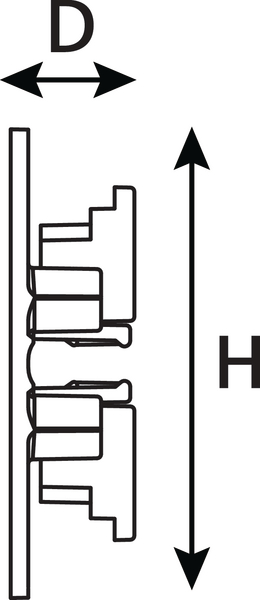

    Type BRIDGE-SP/3A
    Depth (D) 6mm
    Height (H) 22.5mm
    Recov. ∅ d max. 2.4mm
    Width (W) 65mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    GTIN-13 / EAN 5022660149023
    UNSPSC Key 43223338
