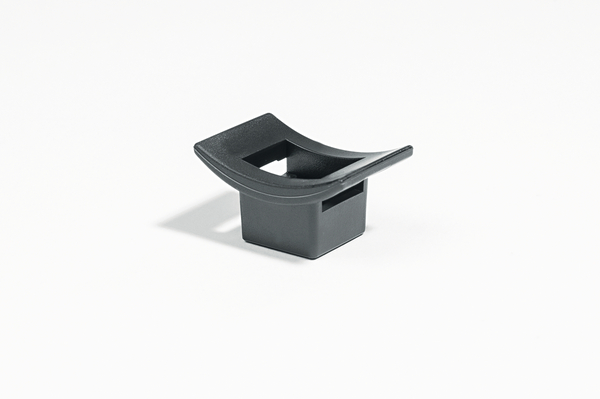

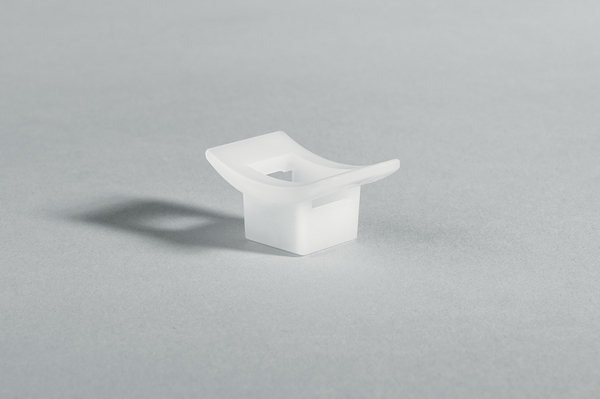

Cable tie mount for screw fixation, Wmax=8.0mm, ∅5.5 mm, M4 Screw, natural, 100pcs.
Art.-No. 151-27019 | LKC-PA66-NA |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    Downloads CAD-Download Datasheet

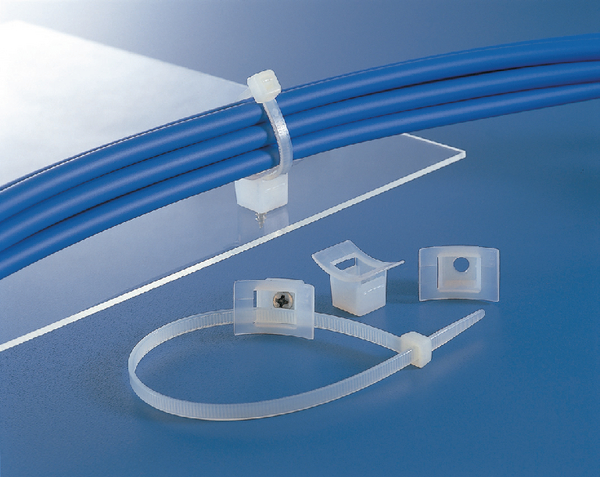

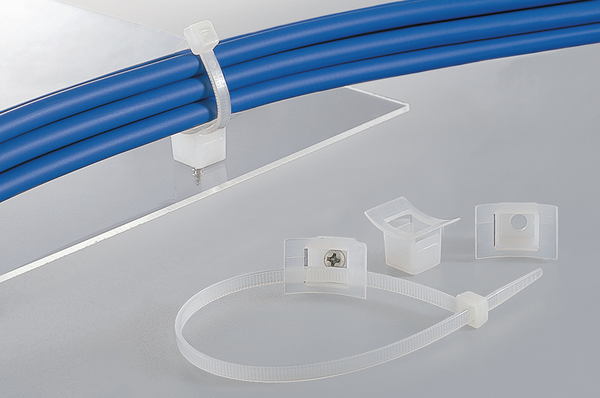

    Application Designed specifically for holding heavier cable bundles, these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width.
    Colour Natural (NA)
    Description Cable Tie Mount LKC
    Fixation Method Screw Mounting and Rivet
    For Ties T50 - T250
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION LKC-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Part No. LKCNT
    Product Family LKC with overlapping curved design
    Product Group Screw fixing mounts
    Type LKC

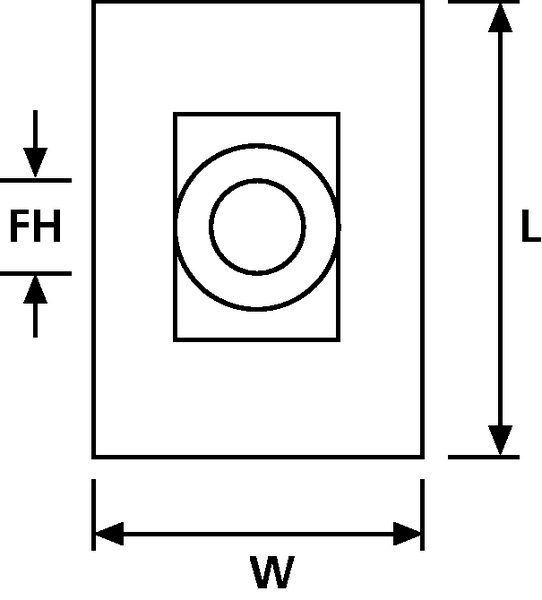

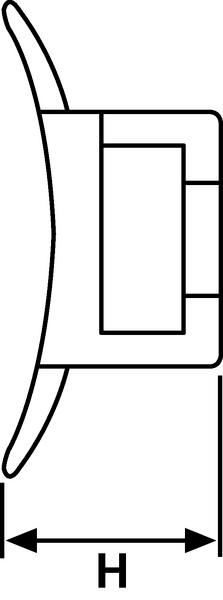

    Height (H) 13.5mm
    Length (L) 25.0mm
    Strap Width max. (G) 8.0mm
    Width (W) 17.0mm
    for Hole ∅ (FH) 5.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5975-12-196-0743
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660310430
    Packaging 1 - Height (m) 0.058m
    Packaging 1 - Length (m) 0.133m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00093m³
    Packaging 1 - Weight (kg) 0.160001kg
    Packaging 1 - Width (m) 0.121m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 10.402kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 229.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
