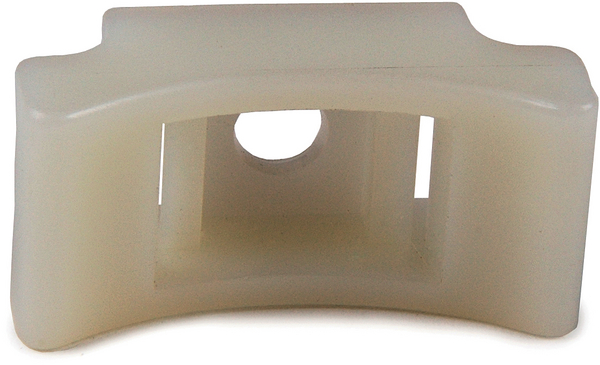

Cable tie mount for screw fixation, Wmax=13.0mm, ∅6.0 mm, M6 Screw, natural, 100pcs.
Art.-No. 151-27219 | LKCSF1-PA66-NA |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    Downloads CAD-Download Datasheet
    Application Designed specifically for holding heavier cable bundles, these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    For Ties LK2 - LK5
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION LKCSF1-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family LKC with overlapping curved design
    Product Group Screw fixing mounts
    Type LKCSF1

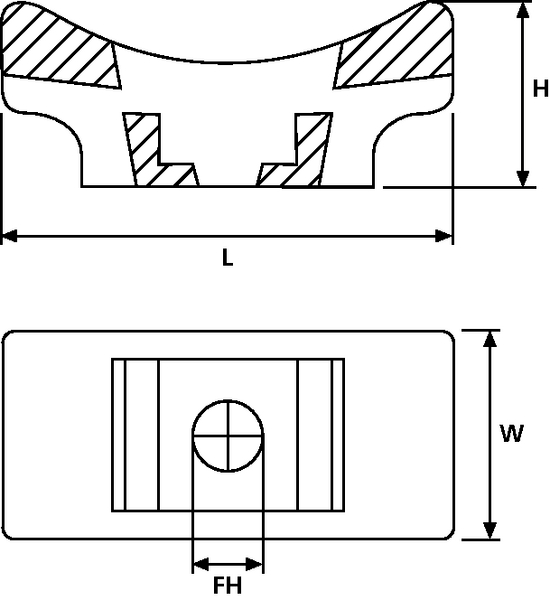

    Height (H) 16.8mm
    Length (L) 40.0mm
    Strap Width max. (G) 13.0mm
    Width (W) 19.0mm
    for Hole ∅ (FH) 6.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5975-12-407-4205
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660155062
    Packaging 1 - Height (m) 0.071m
    Packaging 1 - Length (m) 0.215m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00273m³
    Packaging 1 - Weight (kg) 0.480001kg
    Packaging 1 - Width (m) 0.179m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 10.402kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 229.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
