Cable tie mount for adhesive use, Wmax=5.4mm, ∅4.2 mm, natural, 100pcs.
Art.-No. 151-28459 | MB4CA-PA66-NA |  Details

MB4CA Natural Self Adhesive, Srew Fixing Cable Tie Mount

    This product is not available anymore.
    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Downloads CAD-Download Datasheet
    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Natural (NA)
    Description Cable Tie Mount MB4CA
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION MB4CA-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Part No. 15128459
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Type MB4CA

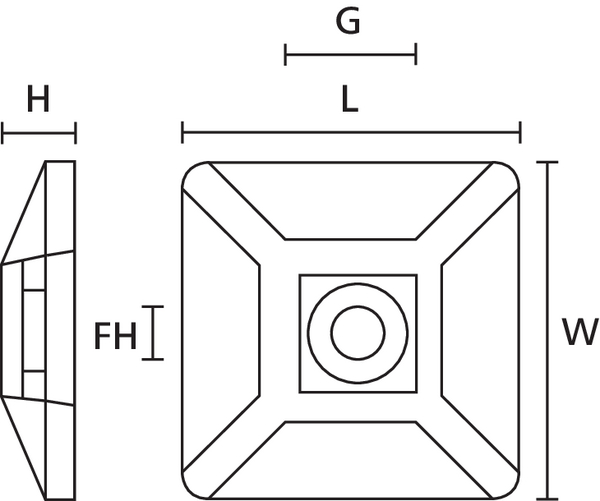

    Height (H) 5.7mm
    Length (L) 29.0mm
    Strap Width max. (G) 5.4mm
    Thickness of Adhesive (TA) nom. 1.0
    Width (W) 29.0mm
    for Hole ∅ (FH) 4.2 mm
    Adhesive Synthetic rubber with base of polyethylene foam
    Adhesive Operating Temperature -40 °C to +60 °C
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Hazardous Goods No
    Operating Temperature -40 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026122731
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00161m³
    Packaging 1 - Weight (kg) 0.280829kg
    Packaging 1 - Width (m) 0.215m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.26058kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 171.24kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
