22/12/2024

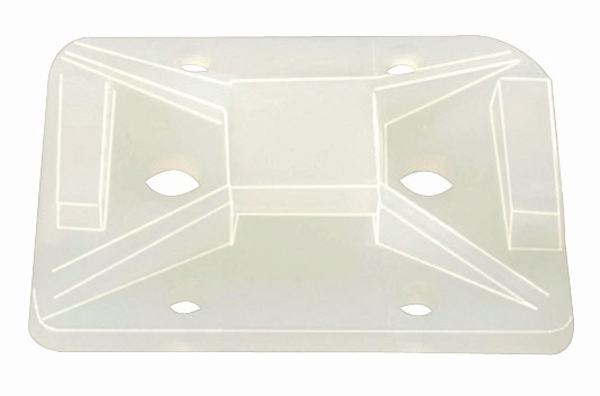

Cable tie mount for screw fixation, Wmax=8.0mm, ∅3.2 mm, natural, 100pcs.
Art.-No. 151-01691 | TY8G1-PA66-NA |  Details

    • Screwable or self-adhesive versions
    • Concave design to support larger diameter cables and bundles
    • 2-way mounting base for safe guiding of cables and conduits
    • Suitable for applications with minimal space
    • Mounted before cable installation
    • Usable with standard cable ties
    Show more
    Downloads Datasheet

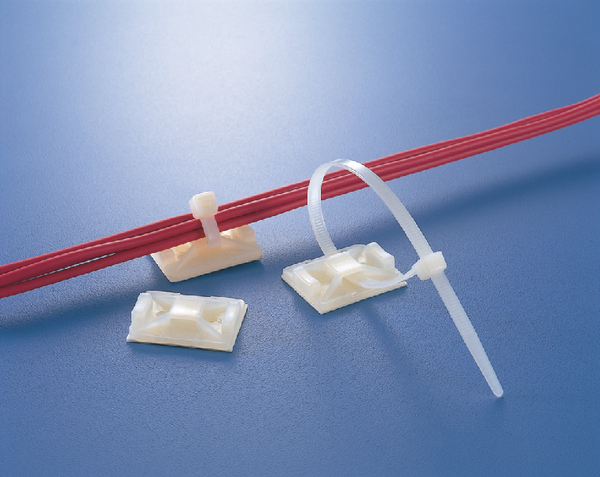

    Application These products are designed for simple yet robust installation in a wide variety of applications. TY-Series mounts with a rectangular design are commonly used in telecoms equipment, switchgear and control cabinets. With its small and compact design TY3G1 offers an easy and rapid assembly for many different applications.
    Colour Natural (NA)
    Description CRADLE SELF ADHESIVE NATURAL
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TY8G1-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Part No. TY8NTNA
    Product Family TY-Series longish design
    Product Group Screw Fixing Cable Tie Mounts
    Type TY8G1
    Fixing Hole Centres (F) 15.0mm
    Fixing Hole Centres (F2) 14.0mm
    Height (H) 5.45mm
    Length (L) 32.0mm
    Strap Width max. (G) 8.0mm
    Width (W) 25.0mm
    for Hole ∅ (FH) 3.2 mm
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242010958
    UNSPSC Key 39121717
