Cable tie inside serrated, 410x4.7mm, ∅110.0mm, black, 100pcs.
Art.-No. 109-00051 | Q50L-PA66-BK |  Details

Q-tie cable ties: choose from a wide product range in different sizes.

    This product is not available anymore.
    • Open lock head for quick and easy insertion
    • Integrated pre-locking function
    • More than 25 % faster in application
    • Inside serration for a strong hold around bundles
    • Easy application either manually or with a processing tool
    Show more
    Downloads
    e-Learning
    Application Q-Series cable ties for bundling and securing cables, pipes a.d hoses. The innovative and effective cable ties enable a simple and quick installation.
    Colour Black (BK)
    Identification Plate Position none
    Key product features for faster processing
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION Q50L-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Part No. 109-00051
    Product Family Q-ties
    Product Group Cable Ties with open head
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type Q50L
    Variant Inside Serrated
    Bundle Diameter max (metric) 110.0mm
    Length (L) 410mm
    Min.Tensile Strength 225N
    Thickness (T) 1.5mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL OCD link Link
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E65344
    GTIN-13 / EAN 4031026412054
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.52m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00218m³
    Packaging 1 - Weight (kg) 0.310001kg
    Packaging 1 - Width (m) 0.14m
    Packaging 3 - Height (m) 0.27m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0621m³
    Packaging 3 - Weight (kg) 13.23004kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 64000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 232.68kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703

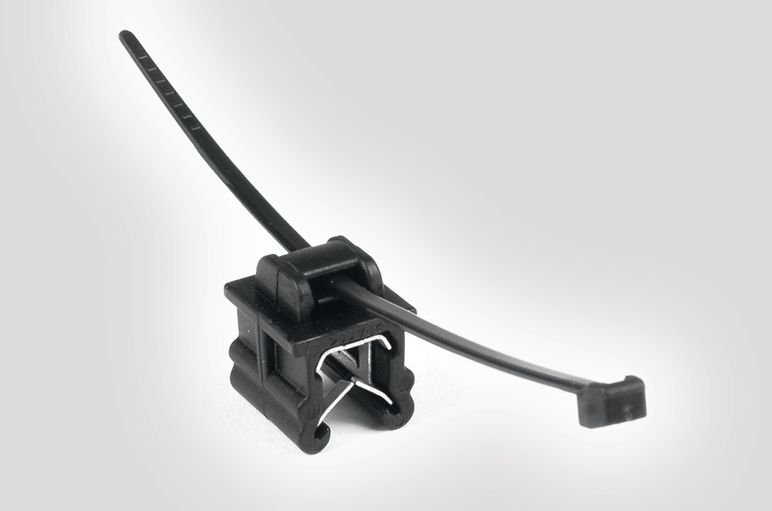

    Cable clips for edges: fasten cables without drilling

    The EdgeClip is a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Cable clips for edges >
    Cable ties and fixings Cable ties and fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable ties >

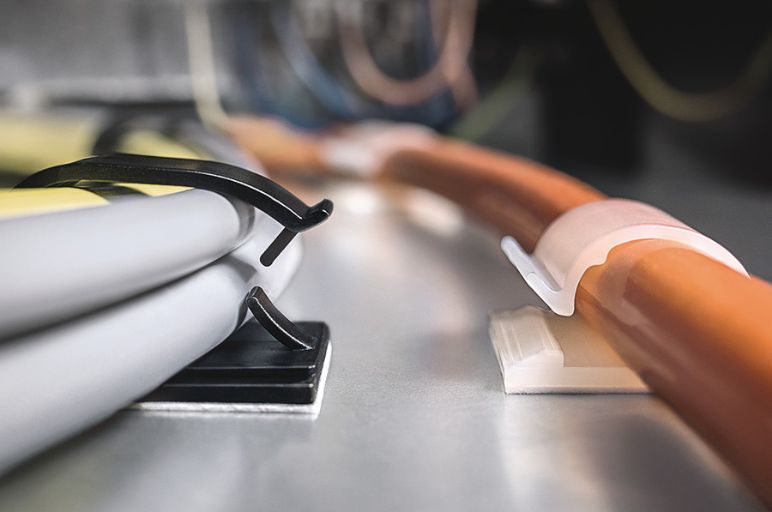

    Cable clips Cable clips
