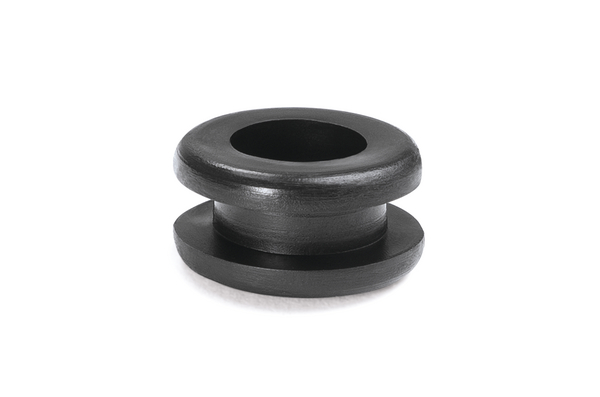

Cable grommet, ∅12.0 mm, black, 1000pcs.
Art.-No. 633-02040 | HV1204-PVC-FR-BK |  Details

Edge Protection Grommet - HV1204.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 11.0mm
    Cable ∅ min 10.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1204-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For punched or drilled metal sheets
    Type HV1204
    Variant Round
    Bundle Diameter max (metric) 17.5mm

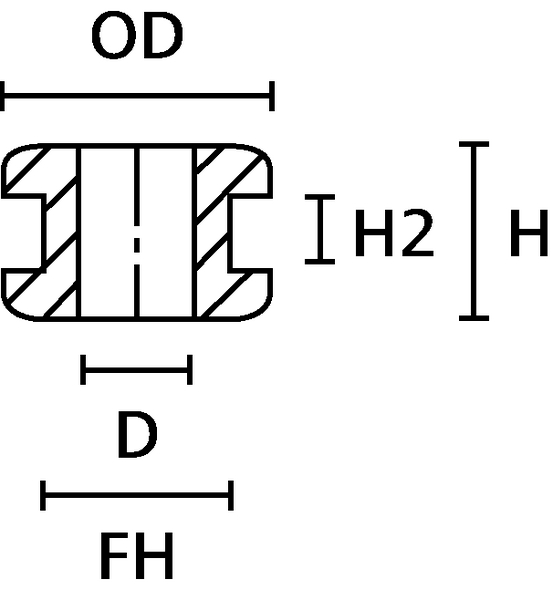

    Diameter (D) 10.0mm
    Height (H) 8.8mm
    Height (H2) 4.0mm
    Outside Ø (OD) 17.5mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 12.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-163-9537
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186276
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01226m³
    Packaging 1 - Weight (kg) 1.042kg
    Packaging 1 - Width (m) 0.38m
    UNSPSC Key 39131603
