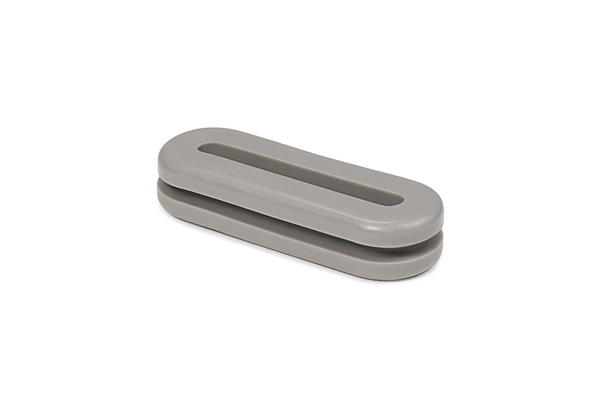

Cable grommet, ∅52.0 mm, grey, 250pcs.
Art.-No. 633-06088 | HV1608-PVC-FR-GY |  Details

Edge Protection Grommet - HV1608.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 47.0mm
    Cable ∅ min 44.0mm
    Colour Grey (GY)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1608-PVC-FR-GY
    Pack Cont. 250pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Type HV1608
    Variant Oval

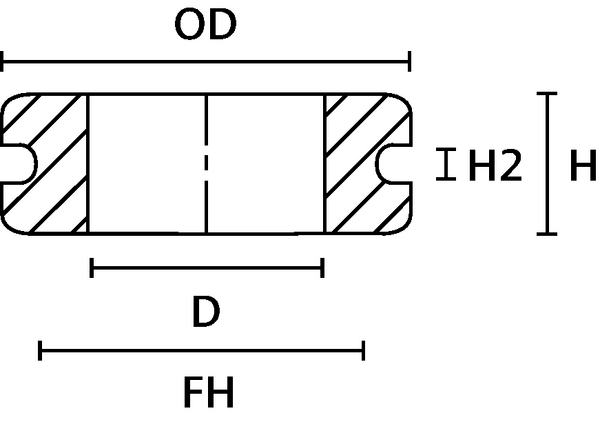

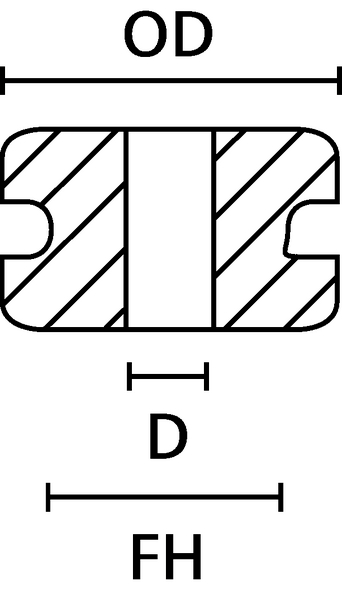

    Diameter (D) 44.0mm
    Height (H) 11.0mm
    Height (H2) 3.0mm
    Outside Ø (OD) 58.0mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 52.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186542
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.33m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00614m³
    Packaging 1 - Weight (kg) 2.341251kg
    Packaging 1 - Width (m) 0.31m
    UNSPSC Key 39131603
    Cable grommets Cable grommets

    Cable grommets

    Whether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find the right cable grommets for your application.
