Customer Connection Point
Art.-No. 857-01238 | CCPA-M122TP/BK-0 |  Details

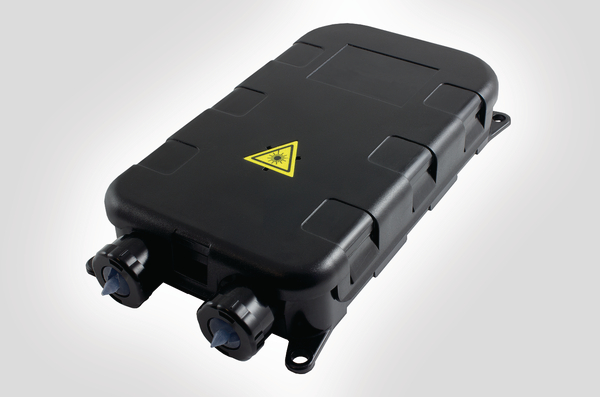

Customer Connection Point.

    • 2 x SC/APC Simplex Adaptors and 2 x SC/APC 900μm Pigtails 1m
    • Fibre management for 2 x 3A or 2 x ANT splices
    • Integral positive fibre management and fibre storage capacity
    • Separate inbound/outbound access points

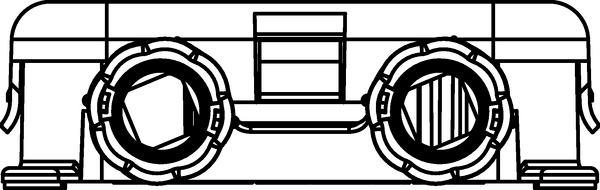

    • Cable entry seal 1 x 4.0 - 6.0mm & 2 x 7.0 - 8.0mm
    • Fully detachable snap on lid
    • IP68/IK08 Rated
    Show more
    Downloads CAD-Download
    Application The Customer Connection Point closure has been designed to be used as an external building entry point. The closure can be wall/facade mounted or put in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
    Cable ∅ max 7.0mm
    Cable ∅ min 4.0mm
    Colour Black (BK)
    Connector Colour Green (GN)
    Content 2 x SC/APC Simplex Adaptor
    2 x SC/APC 900μm Pigtails 1m
    Cable Entry Kit 1 x 4.0 - 6.0mm & 2 x 7.0 - 8.0mm
    Breather Membrane
    Laser Label
    Installed Adapters 2
    Material Polycarbonate (PC)
    PART DESCRIPTION CCPA-M122TP/BK-0
    Package Content packed in box
    Pigtail Cable Capacity 1
    Product Family Fibre Optic External Enclosure
    Product Group Customer Connection Point

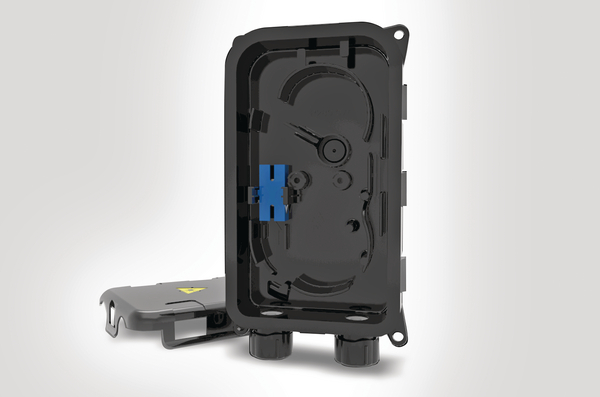

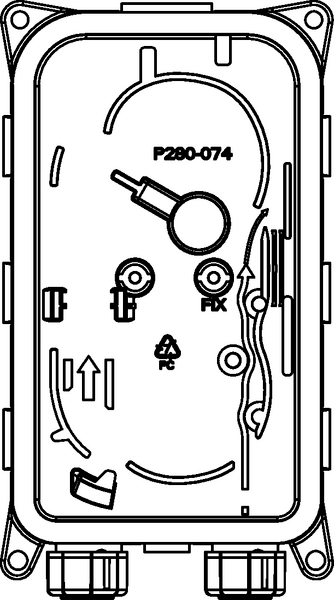

    Technical Description The Customer Connection Point (CCP) is manufactured from V0 and UV stable black poly carbonate and has a fully detachable snap on lid. The closure has 2 separate cable access points which are sealed with a silicon cable entry kit (cable diameter range 4.0mm - 6.0mm) to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure. The unit is supplied with 2 x SC/APC Simplex Adaptors and 2 x SC/APC 900μm Pigtails 1m and provides splice management for 2 x 3A or 2 x ANT splices. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides fibre storage capacity for any excess fibre.
    Type CCPA-M122TP/BK-0
    Variant Outdoor FTTx Enclosures

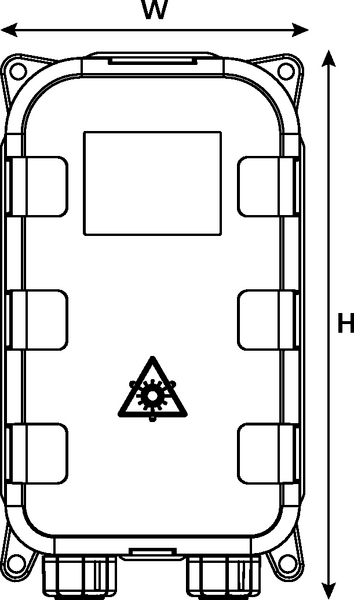

    Depth (D) 28mm
    Height (H) 160mm
    Width (W) 89mm
    GTIN-13 / EAN 5022660158049
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 3 - Qty 1
    Packaging 3 - Type carton
