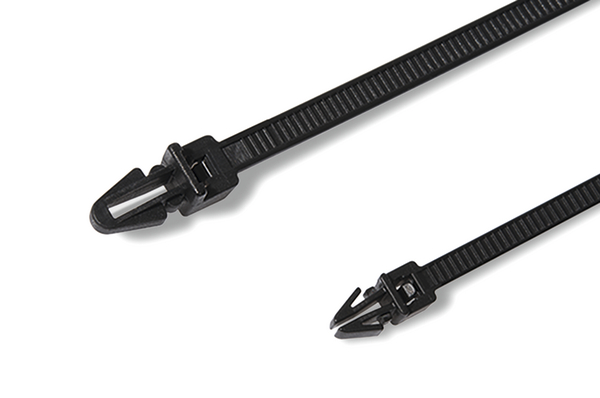

Fixing tie for hole (round), inside serrated, ∅3.0-44.0mm, black, 500pcs.
Art.-No. 126-01001 | T50RSF(E)-PA66-BK |  Details

The arrowhead design allows these fixing ties to be used in areas with limited space.

    • Easy to assemble without the need for a tool

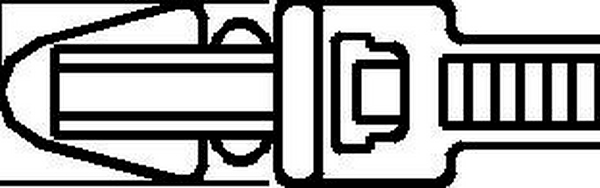

    • Fixing tie with arrowhead without wings
    • Arrowhead simply locks into place
    • Cable tie head always situated in defined position
    Downloads CAD-Download Datasheet
    Application The arrowhead design is usefull in areas with limited space.
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50RSF(E)-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Part No. T50RSFBK
    Product Family T50RSF(E) for max. bundle diameter 50,0 mm
    Product Group 1-Piece Fixing Ties with Arrowhead
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSF(E)
    Variant Inside Serrated
    Bundle Diameter max (metric) 44.0mm
    Bundle ∅ min. 3.0mm

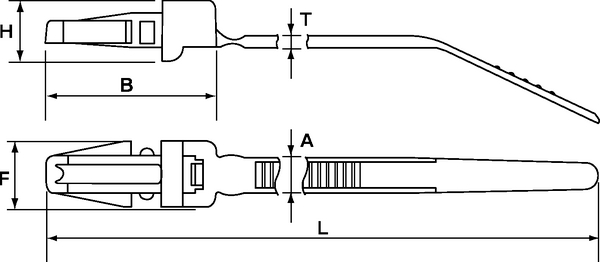

    Height (H) 8.0mm
    Length (L) 210mm
    Min.Tensile Strength 225N
    Panel Thickness 0.11 " – 0.12"
    Panel Thickness max. 2.9 – 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.11"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 - 6.4 mm
    for Panel Thickness min - max 2.9 - 3 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    UL-File Number E64139
    GTIN-13 / EAN 5022660326042
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.355m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00767m³
    Packaging 1 - Weight (kg) 0.786001kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 13.537kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 183.444kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
