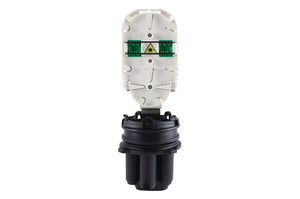

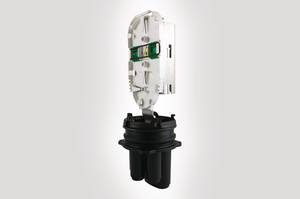

FST 13 Port Closure
Art.-No. 857-40474 | FSTTB-AXXTA25 | Details

More products in this product group:

Colour	Black (BK)
Content	FST 13 Port Base Anchor Ring A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame 2 x Hellapon Small Trays with Crimp/ANT Splice Bridges Anchor Fixing Kit (2) Transportation Tubing Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Method of Sealing	Cablelok
PART DESCRIPTION	FSTTB-AXXTA25
Package Content packed in	kit
Port	LM, B, R
Port count	1, 2, 10
Product Family	A Length
Product Group	FST 13 Port Closure
Qty Trays	2
Splice Capacity	48
Technical Description	The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 2 x Hellapon Small trays with Crimp/ANT bridges giving a maximum of 48 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type	FSTTB-AXXTA25
Type of Tray	Hellapon Small
Variant	Outdoor Enclosure
