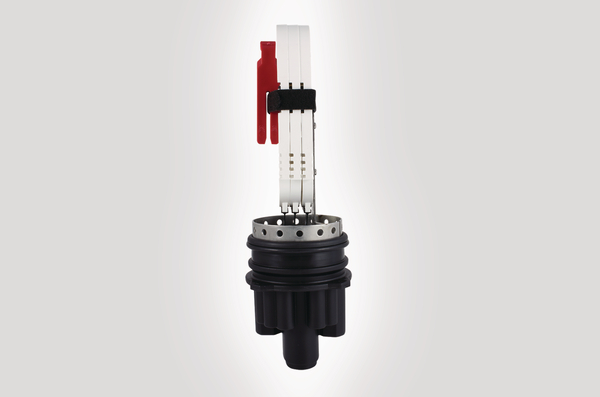

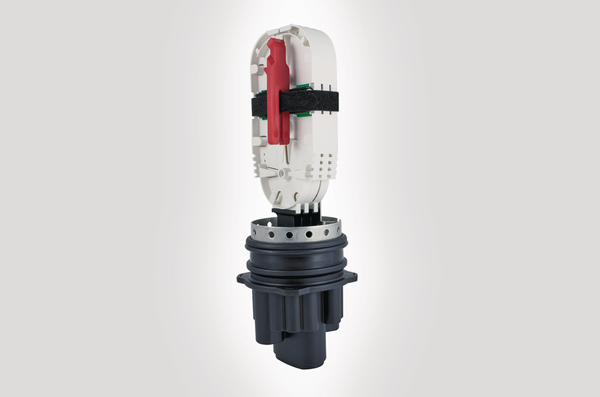

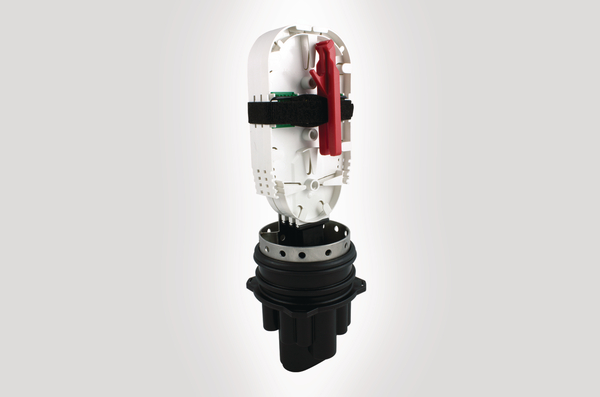

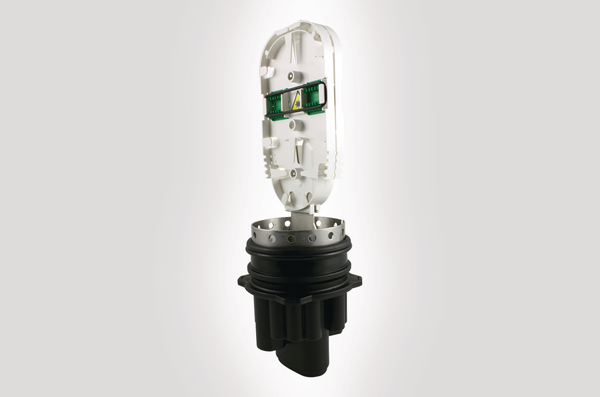

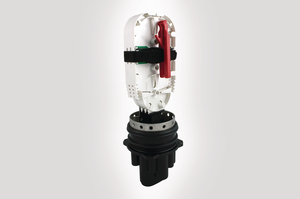

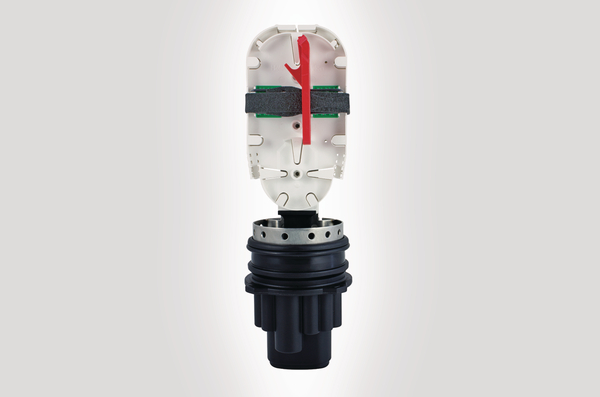

13 port closure with 3 trays
Art.-No. 857-00619 | FSTTB-AXXTA31 | Details

More products in this product group:

Colour	Black (BK)
Content	FST 13 Port Base Anchor Ring A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame 3 x Hellapon Small Trays with 3A Splice Bridges Anchor Fixing Kit (2) Hook and Loop Tray Securing Strap Transportation Tubing Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Material	Polypropylene (PP)
Method of Sealing	Cablelok
PART DESCRIPTION	FSTTB-AXXTA31
Pack Cont.	1Set
Package Content packed in	kit

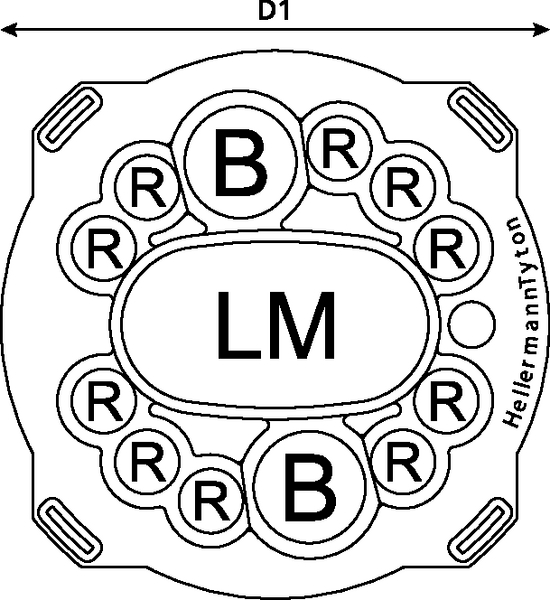

Port	LM, B, R
Port count	1, 2, 10
Product Family	A Length
Product Group	FST 13 Port Closure
Qty Trays	3
Splice Capacity	36

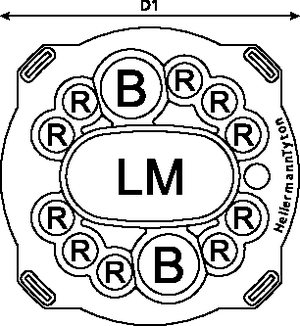

Technical Description	The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 3 x Hellapon Small Trays with 3A Splice Bridges giving a maximum of 36 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type	FSTTB-AXXTA31
Type of Tray	Hellapon Small
Variant	Outdoor Enclosure
