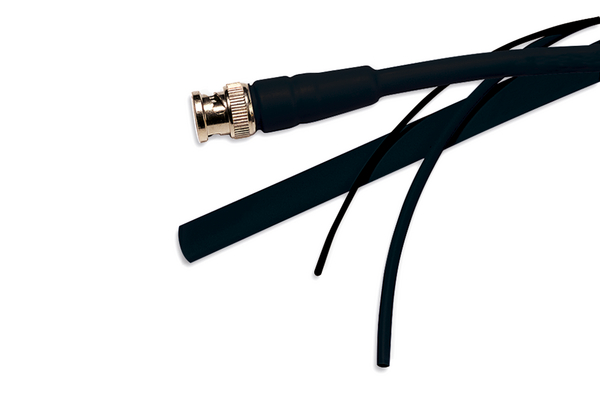

High Shrink Ratio Polyolefin
Art.-No. 911-01541 | HFT-333-PO-BK |  Details

    • 3:1 shrink ratio
    • Highly flexible fast shrinking tubing
    • Superior properties
    • Excellent chemical and thermal resistance
    • Easily copes with components of varying diameter, no tendency to split
    Show more
    Downloads Datasheet
    Application Ideal for providing insulation of electrical connections, terminals, components and wiring systems. Requires a minimum shrink temperature of 120 °C and is well suited to manual as well as automatic methods of application. Suitable for use as a continuous insulation sleeve in a variety of industrial applications e.g aerospace, military and railway industries.
    Colour Black (BK)
    Description HEATSHRINK HFT 9.0/3.0mm BLACK
    Material Polyolefin (PO)
    PART DESCRIPTION HFT-333-PO-BK
    Part No. HFT93TBK
    Product Family HFT-333 High Flexible
    Product Group High Shrink Ratio Polyolefin
    Shrink Ratio 3:1
    Type HFT-333

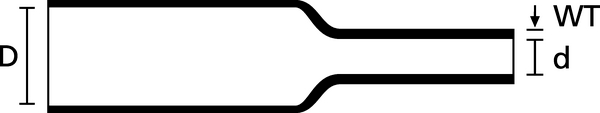

    Recov. ∅ d max. 3.0mm
    Supplied ∅ D min. 9.0mm
    Wall (WT) 0.75mm
    Dielectric Strength 20kV/mm
    Dielectric Strength test method ASTM D2671
    Elongation at break 500%
    Intermittent Operating Temperature +225°C
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +135 °C
    Tensile Strength 18MPa
    GTIN-13 / EAN 6005242011504
