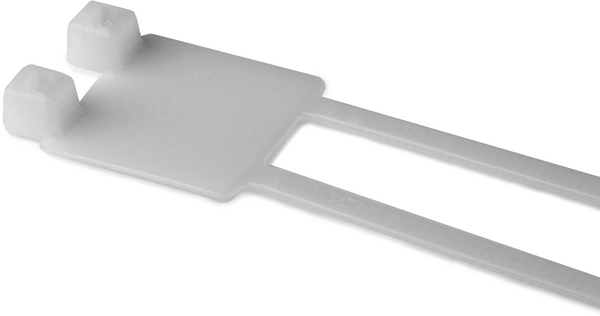

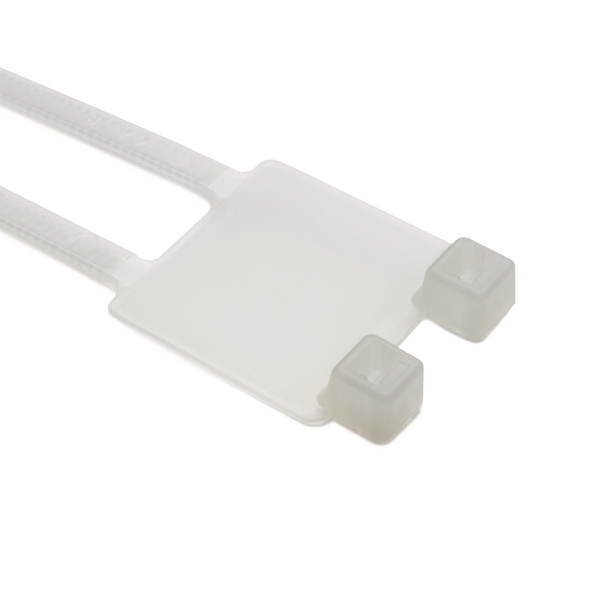

Identification cable tie, 203.2x29.0mm, ∅10.0-44.0mm, natural, 50pcs.
Art.-No. 111-85219
| IT50RD-PA66-NA
|
Details
- Identification ties made of Polyamide 6.6

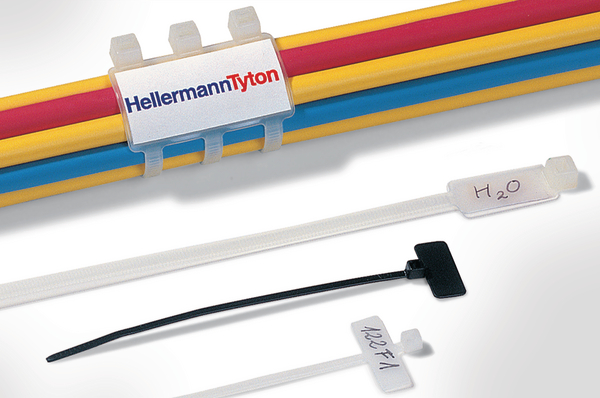

- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Colour | Natural (NA) |
| Fixation Method | None |
| Identification Plate Position | attached to bundle |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | IT50RD-PA66-NA |
| Pack Cont. | 50pcs. |
| Package Content packed in | bag |
| Part No. | IT50RDNT |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAG26-21TD1 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | IT50RD |
| Variant | Inside Serrated |
| With label space | Yes |
|
|

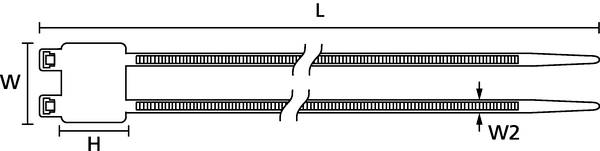

| Bundle Diameter max (metric) | 44.0mm |
| Bundle ∅ min. | 10.0mm |
| H printable | 29.0mm |
| Height (H) | 26.3mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Outside ∅ max (OD max.) | 44.00mm |
| Outside ∅ max. | 1.73" |
| Outside ∅ min. | 0.393" |
| Outside ∅ min. (OD min.) | 10.00mm |
| Print Method | manual marking |
| Thickness (T) | 1.2mm |
| Width (W) | 29.0mm |
| Width (W2) | 0.19" |
| Width (W2) | 4.7mm |
| Width printable | 26.30mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAGE Code 53421 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| US Gov. Designation | MS3368-3-9C, Class 1, SAE-AS33681 |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026107219 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00158m³ |
| Packaging 1 - Weight (kg) | 0.155001kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.142875m |
| Packaging 3 - Length (m) | 0.5159375m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0229m³ |
| Packaging 3 - Weight (kg) | 4.07kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.16m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 28000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.114m³ |
| Packaging 4 - Weight (kg) | 122.08kg |
| Packaging 4 - Width (m) | 0.8m |
