Pre-Insulated Terminals
Art.-No. 911-00620 | 2P12-BU |  Details

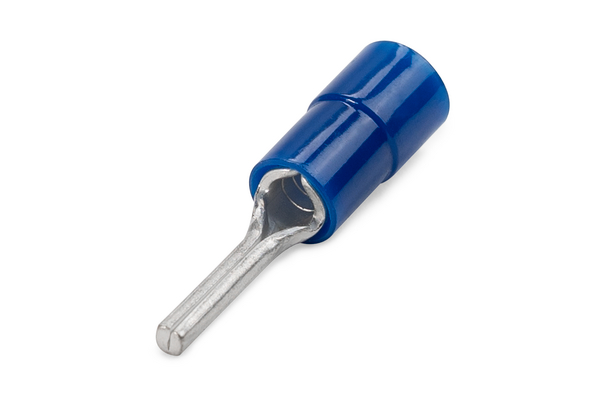

Pin connector single grip terminal, 2P10.

    Colour Blue (BU)
    Description TERMINAL P-I PIN BLUE 12mm
    PART DESCRIPTION 2P12-BU
    Pack Cont. 100pcs.
    Part No. 2P12
    Product Family Insulated Pin Terminals
    Product Group Pre-Insulated Terminals
    Type 2P12
    Length (L) 21.8mm
    Length (L2) 12.0mm
    Max Current 27A
    Max Voltage 600V
    Width (W) 1.9mm
    Wire Size Range (mm²) 1.17-3.24mm²
    GTIN-13 / EAN 6005242017018
    Art.-No.: 911-00620 Details Contact
