Pre-Insulated Terminals
Art.-No. 911-00611 | 2S35-BU |  Details

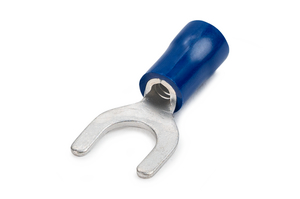

Spade/Fork single grip terminal, 2S series.

    Colour Blue (BU)
    Description TERMINAL P-I SPADE BLUE 3.5mm
    PART DESCRIPTION 2S35-BU
    Pack Cont. 100pcs.
    Part No. 2S35
    Product Family Insulated Spade Terminals
    Product Group Pre-Insulated Terminals
    Type 2S35
    Length (L) 21.0mm
    Length (L2) 6.5mm
    Max Current 27A
    Max Voltage 600V
    Stud ∅ 3.7 mm
    Width (W) 6.0mm
    Wire Size Range (mm²) 1.17-3.24mm²
    GTIN-13 / EAN 6005242012716
